XGSZ12E4503

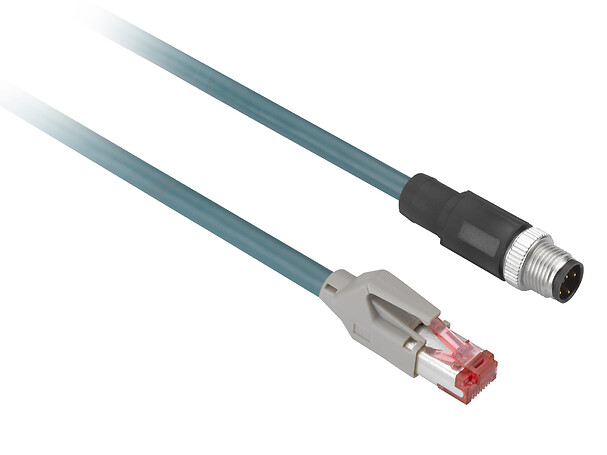

Ethernet copper cable, Radio frequency identification XG, M12 D coded to RJ45, 3 m
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Radio frequency identification XG
Accessory / separate part category
Connection accessories
Accessory / separate part type
Connecting cable
Product or component type
Ethernet copper cable
Product compatibility
XUW
XGSZ33ETH
XGSZ33EIP
XGSZ33ETH
XGSZ33EIP
Accessory / separate part destination
Ethernet network
Cable length
3 m
Transmission rate
100 Mbit/s
Transmission support medium
2 twisted shielded pairs
Communication network category
5e
AWG gauge
AWG 26
Electrical connection
1 male connector, M12 straight connector with 4 pin(s) - encoding type: D coding
1 male connector, RJ45 straight connector with 4 pin(s)
1 male connector, RJ45 straight connector with 4 pin(s)
Conductor material
Copper
Cover material
PUR
IP degree of protection
IP67
Standards
EIA/TIA-568
IEC 60754-1
ISO/IEC 11801 Ed.2, 2002
IEC 60754-1
ISO/IEC 11801 Ed.2, 2002
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.400 cm
Package 1 Width
18.300 cm
Package 1 Length
18.500 cm
Package 1 Weight
154.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
10
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
1.871 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
