XGSZ33PDP
Connection Profibus box, Radio frequency identification XG, DP, 3 channels for XGCS smart antennas
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Radio frequency identification XG
Product or component type
Connection Profibus box
Device short name
XGSZ33
Number of channels
3
Communication port protocol
Profibus DP V1
Station name
XGCS49
XGCS89
XGCS89
Electrical connection
1 female connector M12 4 pins for PC connection (A encoding)
1 female connector M12 5 pins for network output (B encoding)
1 male connector M12 4 pins for power supply (A encoding)
1 male connector M12 5 pins for network input (B encoding)
3 female connectors M12 5 pins for stations XGCS (A encoding)
1 female connector M12 5 pins for network output (B encoding)
1 male connector M12 4 pins for power supply (A encoding)
1 male connector M12 5 pins for network input (B encoding)
3 female connectors M12 5 pins for stations XGCS (A encoding)
[Us] rated supply voltage
24 V DC conforming to Protective Extra Low Voltage
Supply voltage limits
21.6…26.4 V DC
Power consumption in W
2.5 W
Status LED
Diagnostics: 1 dual color LED (red/green)
RFID communication: 1 dual color LED (red/green)
Communication network: 1 LED (green)
Diagnostics: 1 LED (red)
RFID communication: 1 dual color LED (red/green)
Communication network: 1 LED (green)
Diagnostics: 1 LED (red)
Communication service
Cyclical variable exchange
Register words
1...49 words
Transmission support medium
2 twisted shielded pairs cable
Transmission rate
9.6 kbit/s...12000 kbit/s
Marking
CE
Net weight
1.06 kg
Product certifications
Profibus
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-25…85 °C
Relative humidity
30…95 %
IP degree of protection
IP65
EMC filter
Class B EMC filter conforming to EN 55022
Level 3 EMC filter conforming to IEC 61000
Level 3 EMC filter conforming to IEC 61000
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.200 cm
Package 1 Width
16.200 cm
Package 1 Length
24.000 cm
Package 1 Weight
1.005 kg
Unit Type of Package 2
S03
Number of Units in Package 2
3
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
3.583 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

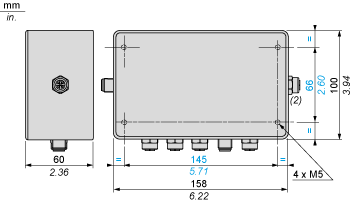

Dimensions
Connection Boxes
Wiring Diagram
PROFIBUS-DP Connections
PROFIBUS-DP Connections
PROFIBUS-DP Connections
PROFIBUS-DP Connections
| Pin no. | Signal |
|---|---|
| 1 | Earth |
| 2 | + 24 VDC |
| 3 | 0 V |
| 4 | D0 |
| 5 | D1 |
| Pin no. | Signal |
|---|---|
| 1 | + 24 VDC |
| 2 | + 24 VDC |
| 3 | 0 V |
| 4 | 0 V |
| Pin no. | Signal | Description |
|---|---|---|
| 1 | VP | Line terminator polarization |
| 2 | RxD/TxD-N | Receive/transmit data (-) (red wire) |
| 3 | DGND | GND PROFIBUS |
| 4 | RxD/TxD-P | Receive/transmit data (+) (green wire) |
| 5 | Shielding | Shielding or earth |
| Connector casing | Shielding | Shielding or earth |
