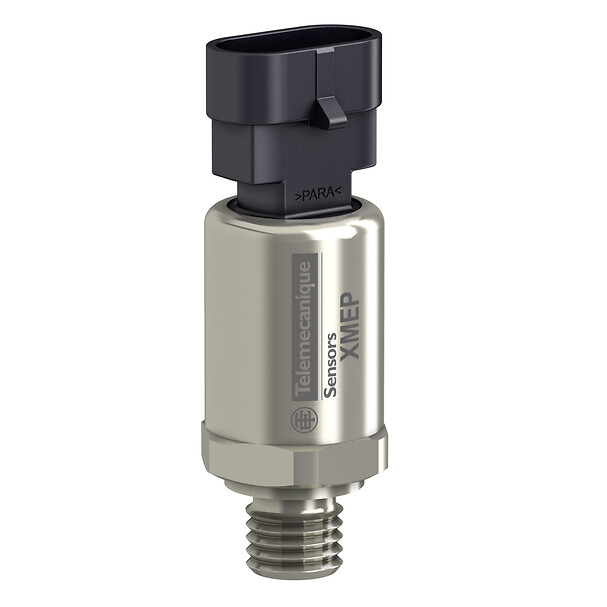

XMEP250BV71F
Electronic pressure sensors, Pressure sensors XM, transmitter, XMEP, 250 bar, G1/4 A male, 0...10 V, AMP Sup, set of 1
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure sensor name
XMEP
Electrical circuit type
Control circuit
Local display
Without
Controlled fluid
Fresh water (0-125 °C), air (-30-125 °C), hydraulic oil (-30-125 °C)
Fluid connection type
G 1/4A (male) conforming to DIN 3852-E
Electrical connection
1 male connector AMP SUPERSEAL 1.5 3 pins
[Us] rated supply voltage
24 V DC SELV (voltage limits: 12-36 V)
Current consumption
< 7 mA
Type of output signal
Analogue
Analogue output function
0...10 V, 3-wire
Quantity per set
Set of 1
Type of packing
Individual
Materials in contact with fluid
Fluorocarbon FPM
stainless steel AISI 316L
stainless steel AISI 316L
Operating position
Any position
Protection type
Load short-circuit
reverse polarity
reverse polarity
Electromagnetic compatibility
Electrostatic discharge immunity test conforming to ISO 10605 criteria A 15 kV air, 15 kV contact, susceptibility to electromagnetic fields conforming to ISO 11452-2 criteria A 100 V/m 200…2000 MHz, susceptibility to electromagnetic fields conforming to ISO 11452-4 criteria A 100 mA 20…400 MHz, susceptibility to conducted disturbances conforming to IEC 61000-4-6 criteria A 30 V 0.15...80 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 criteria A 4 kV, susceptibility to conducted transient disturbances conforming to ISO 7637-2 criteria B level 3
Response time on output
<= 2 ms 10...90 % of full scale
Measurement accuracy
+/- 0,5 % de la plage de mesure
Accuracy
0.1 % of the measuring range
Drift of the sensitivity
+/- 0,02 % of measuring range/°K
Drift of the zero point
+/- 0,02 % of measuring range/°K
Repeat accuracy
+/- 0.5 % of the measuring range
Standards
ECE 10R-5
EN 13309
IEC 61326-2-3
ISO 13766
ISO 14982
UL 61010-1
EN 13309
IEC 61326-2-3
ISO 13766
ISO 14982
UL 61010-1
Product certifications
CE
cULus
E2
cULus
E2
Vibration resistance
12 gn sinus (f = 20-520 Hz) test 4 conforming to ISO 16750-3, 18 gn random (f = 10-2000 Hz) test 4 conforming to ISO 16750-3
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
4.5 CENTIMETER
Package 1 length
8.5 CENTIMETER
Package 1 weight
0.098 KILOGRAM
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
4.1 CENTIMETER
Package 2 width
4.5 CENTIMETER
Package 2 length
8.5 CENTIMETER
Package 2 weight
0.098 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
