XMLA500N2C11
pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XMLA500N2C11
PIM CR type
Standard Commercial Reference
Product sub-type
Standard CR
Product typology
Referenced Sold Product
Short description
PRESSURE SWITCH XMLA 500 BAR FIXED SCALE
Medium description
Pressure switch XMLA 500 bar - fixed scale 1 threshold - 1 C/O
Website publication
1
Product manager
Man CAO
Base unit of measure
PCE
ERP-Print medium description
PRESSURE SWITCH XMLA 500 BAR FIXED SCALE 1 THRESHOLD 1 OC
ETIM classification
ETIM 9 - EC000243 - Pressure switch
***TABLE***
Commercial status
08 - Commercialised
Warranty
18 months
Country of origin
CZ (Czech Republic)
MA (Morocco)
MA (Morocco)
Density of package
0 GRAM_PER_CUBIC_CENTIMETER
[BMEcat] Reach info
True
[BMEcat] RoHS indicator
True
Equipment category according to Annex I of EU RoHS 2011/65/EU
9i
1907/2006 - Reach regulation - Annex XVII status
Free of any substance listed in Annex XVII above threshold
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant with exemption(s)
1907/2006 - Reach regulation - EC number(s)
231-100-4
1907/2006 - Reach regulation - CAS number(s)
7439-92-1
1907/2006 - Reach regulation - SCIP ID
4fd7ba89-3e11-4508-b46d-e8d9ee06fc9d
1907/2006 - Reach regulation - SVHC content(s)
Lead
1907/2006 - Reach regulation - Specific safe conditions of use
None
1907/2006 - Reach regulation - Candidate list version
June 2025
2011/65/EU - RoHS - Exemptions according to Annex III
6(a);6(c)
GTIN
3389110712483
EAN13
3389110712483
Dangerous goods code
Not Applicable
Package 1 GTIN
3389110712483
Package 1 width
4.2 CENTIMETER
HS6 customs code (global)
853650
Package 1 height
12.5 CENTIMETER
Package 1 length
8.2 CENTIMETER
Package 1 weight
0.085 KILOGRAM
Volume of package 1
430.5 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings

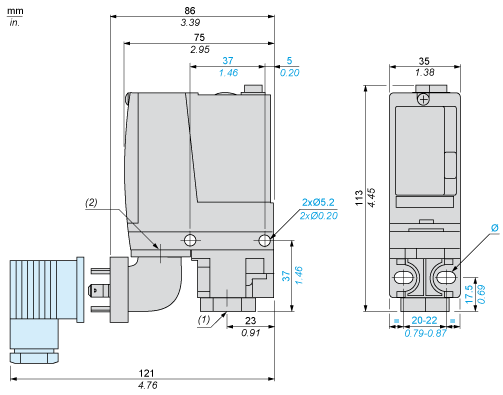

Dimensions
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) EN 175301-803-A connector
- Ø : 2 elongated holes Ø 5.2 x 6.7
Wiring Diagram
Terminal Model
Wiring Diagram
Vacuum Switch Connector Pin View
- (1) 11 and 13
- (2) 12
- (3) 14
Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- (y) Rising pressure
- (x) Falling pressure
- (y) Pressure
- (x) Time
- (1) Adjustable value
- (2) Non adjustable value
- PH : High point
- PB : Below point
