XMLB004A2S12EX

pressure switch XMLB - 4 bar - adjustable scale 2 thresholds - 1 C/O

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Technical Drawings

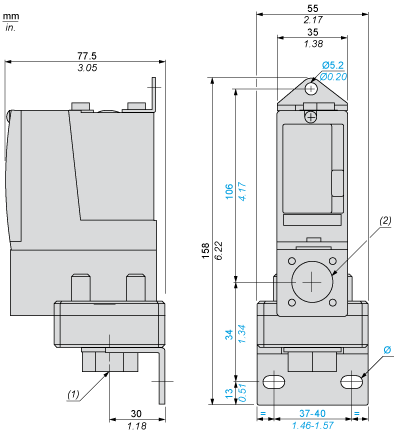

Dimensions

epds
  • (1) 1 fluid entry, tapped G1/4 (BSP female)
  • (2) 1 electrical connections entry, tapped M20 x 1.5
  • Ø : 2 elongated holes Ø 10.2 x 5.2

Wiring Diagram

Terminal Model

epds

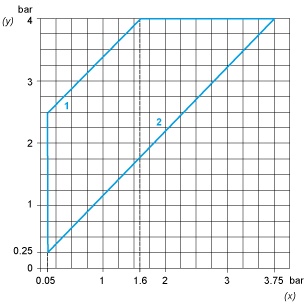

Operating Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
  • (y) Pressure
  • (x) Time
  • (1) Adjustable value
  • PH : High point
  • PB : Below point
