XMLB020A2S12EX

Pressure switch XMLB - 20 bar - adjustable scale 2 thresholds - 1 C/O

arrow

Commercialized

green premium
Download pdf datasheet Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Product specific application
ATEX D
Pressure sensor name
XMLB
Electrical circuit type
Control circuit
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Pressure rating
20 bar
Local display
With
Fluid connection type
G 1/4 (female) conforming to ISO 228
Adjustable range of switching point on falling pressure
0.3…18.4 bar
Adjustable range of switching point on rising pressure
1.3…20 bar
Possible differential maximum at high setting
11 bar
Maximum permissible accidental pressure
45 bar
Destruction pressure
90 bar
Pressure actuator
Diaphragm
Controlled fluid
Air (0…70 °C)
Water (0…70 °C)
Hydraulic oil (0…70 °C)
Materials in contact with fluid
Nitrile
Zinc alloy
Enclosure material
Zinc alloy
Maximum permissible pressure - per cycle
25 bar
Cable entry number
1 tapped entry for M20 x 1.5 cable gland (included)
Terminal block type
4 terminals
Repeat accuracy
2 %
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Mechanical durability
5000000 cycles
Setting
External
Terminals description ISO n°1
(13-14-11-12)OF
Height
113 mm
Depth
75 mm
Width
35 mm
Standards
EN/IEC 60079-0
EN/IEC 60079-31
Directives
2014/34/EU - ATEX directive
Product certifications
INERIS 04ATEX0058
IEC-Ex INE 17.0019
Marking
II2 D-Ex tb IIIC T85°C Db IP66
Protective treatment
TC
Ambient air temperature for operation
-20…60 °C
Operating position
Any position
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.1 cm
Package 1 Width
10.2 cm
Package 1 Length
15.1 cm
Package 1 Weight
723.0 g
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Yes
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months

Expand all

Technical Drawings

Dimensions

epds
  • (1) 1 fluid entry, tapped G1/4 (BSP female)
  • (2) 1 electrical connections entry, tapped M20 x 1.5
  • Ø : 2 elongated holes Ø 5.2 x 6.7

Wiring Diagram

Terminal Model

epds

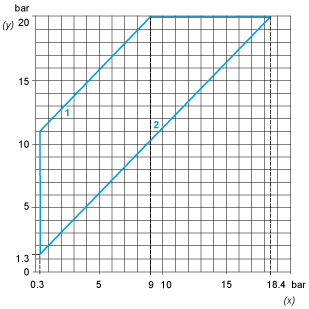

Operating Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
  • (y) Pressure
  • (x) Time
  • (1) Adjustable value
  • PH : High point
  • PB : Below point

Expand all

Documents & Downloads

Document name
Date
Size
Vacuum controller and pressure controller with display (zip)

11/23/2023

230.0 kB

Vacuum controller and pressure controller with display (zip)

11/23/2023

137.5 kB

Document name
Date
Size
XMLB020A2S12EX EU RoHS Declaration (pdf)

4/29/2024

195.3 kB

XMLB020A2S12EX REACh Declaration (pdf)

4/29/2024

195.3 kB

Document name
Date
Size
XMLB...EX Pressure and vacuum switches ATEX, Instruction Sheet (pdf)

12/15/2023

2.9 MB

Expand all

Related products & accessoires

XMLB300D2S12EX

pressure switch XMLB - 300 bar - adjustable scale 2 thresholds - 1 C/O
