XMLDM02V1S11
vacuum switch XMLD -1 bar - 2 stages fixed scale - 2 C/O
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XMLDM02V1S11
PIM CR type
Standard Commercial Reference
Product sub-type
Standard CR
Product typology
Referenced Sold Product
Short description
VACUUM SWITCH XMLD 1 BAR 2 STAGES FIXED
Medium description
Vacuum switch XMLD -1 bar - 2 stages fixed scale - 2 C/O
Website publication
1
Product manager
Man CAO
Base unit of measure
PCE
ERP-Print medium description
VACUUM SWITCH XMLD 1 BAR 2 STAGES FIXED SCALE 2OC
ETIM classification
ETIM 9 - EC000243 - Pressure switch
***TABLE***
Commercial status
08 - Commercialised
Warranty
18 months
Country of origin
CZ (Czech Republic)
MA (Morocco)
MA (Morocco)
Density of package
0.001 GRAM_PER_CUBIC_CENTIMETER
[BMEcat] Reach info
True
[BMEcat] RoHS indicator
True
Equipment category according to Annex I of EU RoHS 2011/65/EU
9i
1907/2006 - Reach regulation - Annex XVII status
Free of any substance listed in Annex XVII above threshold
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant with exemption(s)
1907/2006 - Reach regulation - EC number(s)
231-100-4
1907/2006 - Reach regulation - CAS number(s)
7439-92-1
1907/2006 - Reach regulation - SCIP ID
B0186a91-6763-4310-8c84-01613508c338
1907/2006 - Reach regulation - SVHC content(s)
Lead
1907/2006 - Reach regulation - Specific safe conditions of use
None
1907/2006 - Reach regulation - Candidate list version
June 2025
2011/65/EU - RoHS - Exemptions according to Annex III
6(a)
GTIN
3389110944150
EAN13
3389110944150
Dangerous goods code
Not Applicable
Package 1 GTIN
3389110944150
Package 1 width
10.5 CENTIMETER
HS6 customs code (global)
903220
Package 1 height
6 CENTIMETER
Package 1 length
14 CENTIMETER
Package 1 weight
1.05 KILOGRAM
Volume of package 1
882 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings

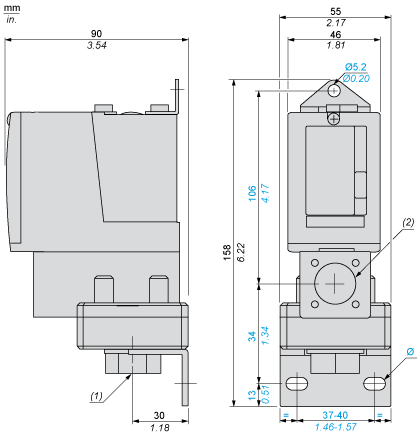

Dimensions
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) 1 electrical connections entry, tapped Pg 13.5
- Ø : 2 elongated holes Ø 10.2 x 5.2
Wiring Diagram
Terminal Model
- (a) Contact 1
- (b) Contact 2
Operating Curves
High Setting Tripping Points of Contacts 1 and 2
- (x) PH1 setting (falling pressure)
- (y) PH2 setting (falling pressure)
- 1 : Maximum differential
- 2 : Minimum differential
Operating Curves
Natural Differential of Contacts 1 and 2
- (x) PH1 setting (falling pressure)
- (y) PH2 setting (falling pressure)
- 1 : Maximum differential
- 2 : Minimum differential
- (x) Rising pressure
- (y) Falling pressure
- EF : Contact 1
- GH : Contact 2
Natural Differential of Contacts 1 and 2
- (x) PH1 setting (falling pressure)
- (y) PH2 setting (falling pressure)
- 1 : Maximum differential
- 2 : Minimum differential
- (x) Rising pressure
- (y) Falling pressure
- EF : Contact 1
- GH : Contact 2
- (x) Time
- (y) Vacuum
- (1) Adjustable value
- (2) Non adjustable value
- PH : High point
- PB : Below point
