XMLK010B2C21

Telemecanique Pressure sensors XM

Electronic pressure sensors

Pressure transmitter

XMLK

Control circuit

10 bar

Without

Air (0…80 °C)
Fresh water (0…80 °C)

G 1/4A (male) conforming to DIN 3852-E

1 male connector EN 175301-803-A (ex DIN43650) 4 pins

24 V DC SELV (voltage limits: 8…33 V)

< 20 mA

Analogue

4...20 mA, 2-wire

Set of 1

Individual

0…10 bar

20 bar

30 bar

Stainless steel type AISI 303
Nitrile (NBR)
Ceramic

Any position

Load short-circuit
Reverse polarity

Electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 6 kV contact
Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV
1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 500 V 12 Ohm, 1 kV 42 Ohm
Radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz
Immunity to magnetic fields conforming to IEC 61000-4-8 30 A/m 50 Hz

0.5 kV

< 5 ms

+/- 1 % of the measuring range

0.1 % of the measuring range

+/- 0.04 % of measuring range/°K

+/- 0.03 % of measuring range/°K

+/- 1 % of the measuring range

10000000 cycles

0.11 kg

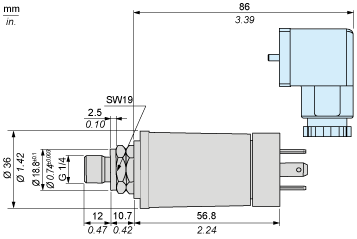

36 mm

67.5 mm

Fixed differential

IEC 61326-2-3
CE

RCM
CSA C22.2 No 14
UL 508

TC

0…80 °C

-25…80 °C

20 gn (f = 9…2000 Hz) conforming to IEC 60068-2-6

25 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529

NEMA 4

PCE

1

6.600 cm

4.100 cm

9.500 cm

132.000 g

S01

24

15.000 cm

15.000 cm

40.000 cm

3.336 kg

REACh Declaration

Yes

Pro-active compliance (Product out of EU RoHS legal scope)

Yes

Yes

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

18 months
