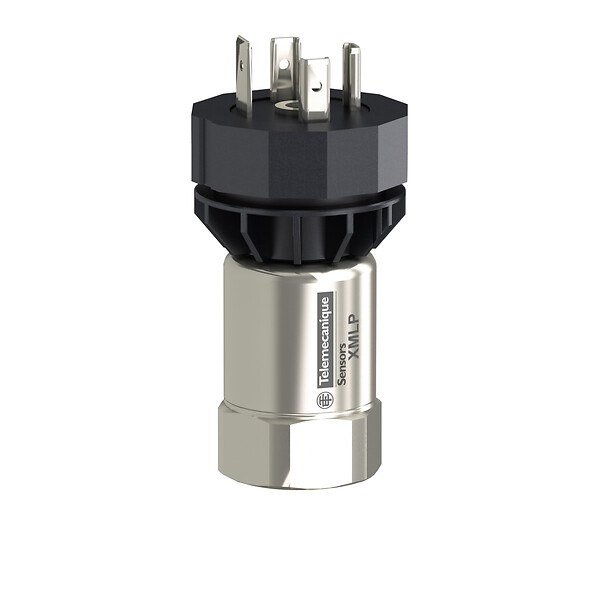

XMLP060BC290

TE PRESSURE SSRS XM

ELECTRONIC PRESSURE SENSORS

PRESSURE TRANSMITTER

XMLP

CONTROL CIRCUIT

WITHOUT

Fresh water (0-135 °C),
air (-40-135 °C),
hydraulic oil (-40-135 °C),
gas (-40-135 °C),
refrigeration fluid (-40-135 °C)

SAE 7/16-20UNF-2B (female) with schrader

1 male connector EN 175301-803-A (ex DIN43650) 3 pins

12...24 V DC SELV (voltage limits: 7-33 V)

23 MA

ANALOGUE

4...20 mA, 2-wire

SET OF 1

INDIVIDUAL

STAINLESS STEEL TYPE AISI 303

ANY POSITION

LOAD SHORT CIRCUIT
REVERSE POLARITY

Electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact,
1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm,
immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz,
electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV,
susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz,
radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz

<= 2 ms 10...90 % of full scale

0 5 PT OF MEASURING RANGE

0 1 PT OF THE MEASURING RANGE

0 02 PT OF MSRG RANGE D K

0 02 PT OF MSRG RANGE D K

IEC 61326 2 3
NSF ANSI 61

CE
CULUS
RCM

TC

20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6

100 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529

PCE

1

4.2000 CENTIMETER

4.7000 CENTIMETER

8.7000 CENTIMETER

114.0000 GRAM
