XS1M18AB120EX
Inductive proximity sensors XS for hazardous area dust, inductive sensor analog, M18, Sn5mm, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
ATEX dust
Sensor design
Cylindrical M18
Size
18 mm
Body type
Fixed
Type of output signal
Analogue
Wiring technique
2-wire
Detector flush mounting acceptance
Flush mountable
Material
Metal
Analogue output range
4...20 mA
Electrical connection
Cable
Output circuit type
DC
[Us] rated supply voltage
12...24 V DC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M18 x 1
Front material
PPS
Sensing range
> 4...8 mm
Linearity error
+/- 2 mA
Repeat accuracy
<= 3% of Sr
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Switching frequency
<= 500 Hz
Output current drift
10 PERCENTAGE
Current consumption
4 mA no-load
Marking
II2 D-Ex tb IIIC T90°C Db IP67
Product certifications
INERIS 04ATEX0022
Standards
IEC 60079-0
IEC 60079-31
IEC 60079-31
Environmental characteristic
Hazardous location
Directives
94/9/EC - ATEX directive
Dust zone
Zone 21 - 22
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.9 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Mounting
Wiring Schemes

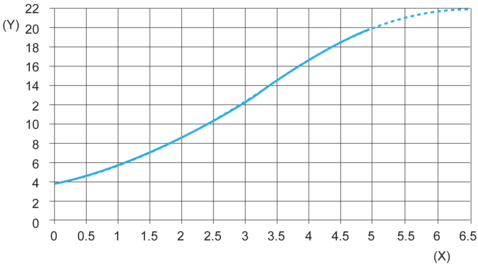

Output Curves
