XS230SAPAM12

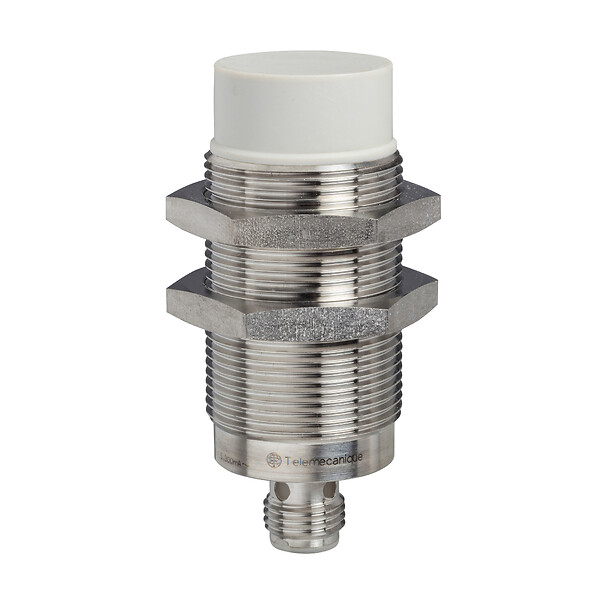

Inductive proximity sensors XS, inductive sensor XS2 M30, L70mm, stainless, Sn22mm, 12...24 VDC, M12
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
Food and beverage
Market segment
Pharmaceutical
Sensor name
XS2
Sensor design
Cylindrical M30
Size
70 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Stainless steel
Type of output signal
Discrete
Wiring technique
3-wire
[Sn] nominal sensing distance
22 mm
Discrete output function
1 NO
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP69K conforming to DIN 40050
IP69K conforming to DIN 40050
Thread type
M30 x 1.5
Detection face
Frontal
Front material
PPS
Enclosure material
Stainless steel 316 L
Sensing range
> 15...40 mm
Operating zone
0…17.6 mm
Differential travel
1...15% of Sr
Status LED
Output state: 1 LED (yellow)
Supply voltage limits
10…36 V DC
Switching frequency
<= 500 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Maximum delay first up
10 ms
Maximum delay response
0.6 ms
Maximum delay recovery
1.4 ms
Marking
CE
Threaded length
36 mm
Length
70 mm
Net weight
0.145 kg
Product certifications
UL
CSA
CSA
Ambient air temperature for operation
-25…85 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.200 cm
Package 1 Width
6.500 cm
Package 1 Length
9.500 cm
Package 1 Weight
144.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
11
Package 2 Height
15 cm
Package 2 Width
15 cm
Package 2 Length
40 cm
Package 2 Weight
1.756 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

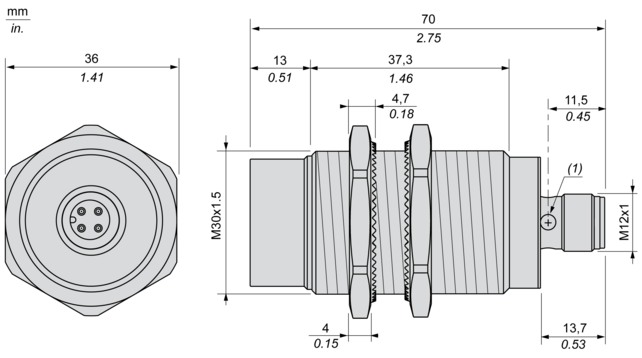

Dimensions
(1) : LED
Minimum Mounting Distances in mm
Side by side
e (1) ≥ 120 mm/4.72 in.
Face to face
e (2) ≥ 264 mm/10.39 in.
Facing a metal object
e (3) ≥ 66 mm/2.60 in.
(4) Metal
(5) Object to be detected
Wiring Schemes
M12 connector
PNP
1 : (+)
2 : Not connected
3 : (-)
4 : NO Output
