XS8C4A4PCP20EX
Inductive proximity sensors XS for hazardous area dust, 40x40x117, Sn40 mm, 12..48VDC, NO+NC, terminals
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
ATEX dust
Sensor name
XS8
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Enclosure material
PBT
[Sn] nominal sensing distance
40 mm
Type of output signal
Discrete
Wiring technique
4-wire
Discrete output function
1 NO + 1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP65 conforming to IEC 60529
Safety level
SIL 2 conforming to EN/IEC 61508
PL = d conforming to EN/ISO 13849-1
SILCL 2 conforming to IEC 62061
PL = d conforming to EN/ISO 13849-1
SILCL 2 conforming to IEC 62061
Safety reliability data
MTTFd = 1546 years
PFHd = 7.4E-8 1/h
SFF = 92 %
DC = 75 % with appropriate safety controller
PFHd = 7.4E-8 1/h
SFF = 92 %
DC = 75 % with appropriate safety controller
Detection face
5 positions turret head
Front material
PBT
Sensing range
> 15...40 mm
Operating zone
0…16 mm
Differential travel
3...15% of Sr
Repeat accuracy
<= 3% of Sr
Cable entry number
1 tapped entry for M20 x 1.5 cable gland (included)
Status LED
Supply on: 1 LED (green)
Output state: 1 LED (yellow)
Output state: 1 LED (yellow)
Supply voltage limits
10…58 V DC
Switching frequency
<= 200 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
0...15 mA no-load
Maximum delay first up
7.5 ms
Maximum delay response
1.4 ms
Maximum delay recovery
2.5 ms
Marking
II2 D-Ex tb IIIC T85°C Db IP67
Depth
40 mm
Height
40 mm
Width
117 mm
Net weight
0.294 kg
Environmental characteristic
Hazardous location
Standards
EN/IEC 60079-0
EN/IEC 60079-31
EN/IEC 60079-31
Directives
2014/34/EU - ATEX directive
Product certifications
INERIS 16ATEX0037X
IEC-Ex INE 16.0047X
IEC-Ex INE 16.0047X
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-25…70 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to EN 60068-2-27
Dust zone
Zone 21 - 22
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.0 cm
Package 1 Width
5.0 cm
Package 1 Length
14.0 cm
Package 1 Weight
244.0 g
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

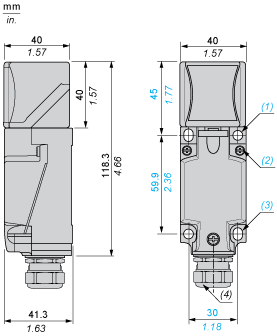

Dimensions
- (1) 2 holes Ø 5,45 mm / Ø 0.21 in. (Tightening torque: < 1,5 Nm / < 13.3 Ib-in.)
- (2) 3 screws M3,5. (Tightening torque: < 1,2 Nm / < 10.6 Ib-in.)
- (3) 2 elongated holes 5,4 x 7,4 mm / 0.21 x 0.29 in. (Tightening torque: < 1,5 Nm / < 13.3 Ib-in.)
- (4) Hazardous area certified cable gland, (Tightening torque: < 4 Nm / < 35.4 Ib-in.)
Mounting

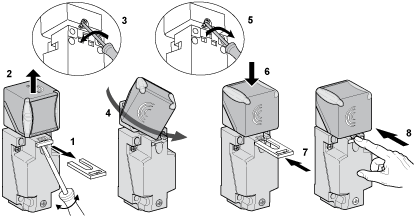

Head Positions
Setting-up Precautions
- e (1) ≥ 160
- e (1) ≥ 160
- e (2) ≥ 320
- e (1) ≥ 160
- e (2) ≥ 320
- e (3) ≥ 120
Wiring Schemes
4-Wire DC

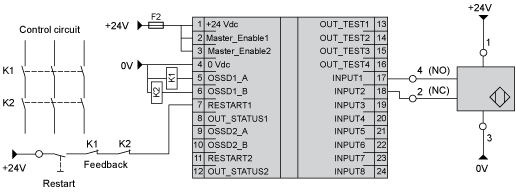

SIL 2 Wiring Scheme
With Preventa XPSMF40 Safety PLC
- SFF : (Safe Failure Fraction): 92,68 %
- DC : (Diagnosis Coverage): 75,8 %
