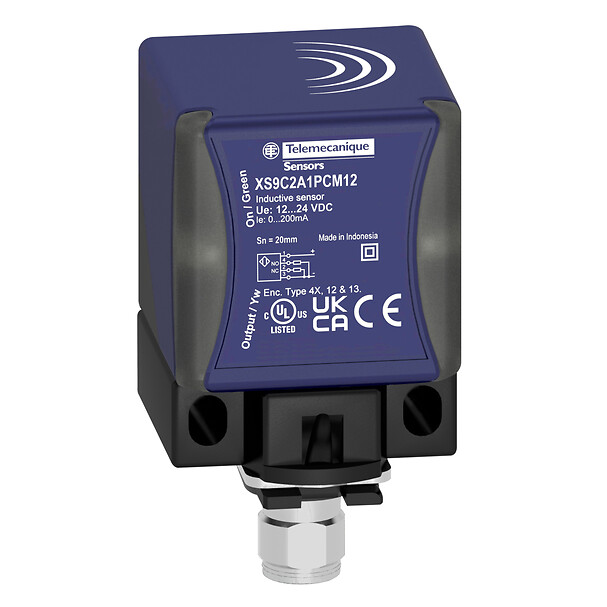

XS9C2A1PCM12
Inductive proximity sensors XS, inductive sensor XS9 40x40x70, PBT, Sn20 mm, 12...24 VDC, M12
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application, high performance
Sensor type
Inductive proximity sensor
Device application
Welding machine
Factor 1 (Fe/Nfe)
Factor 1 (Fe/Nfe)
Sensor name
XS9
Sensor design
Form 40 x 40 x 70
Size
70 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
3-wire
[Sn] nominal sensing distance
20 mm
Discrete output function
1 NO + 1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Male connector M12, 4 pins
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
Detection face
5 positions turret head
Front material
PBT
Operating zone
0…16 mm
Differential travel
3...15% of Sr
Repeat accuracy
<= 3% of Sr
Electromagnetic compatibility
Immunity to magnetic fields - test level: 250 mT
Status LED
Supply on: 1 LED (green)
Output state: 1 LED (yellow)
Output state: 1 LED (yellow)
Supply voltage limits
10…36 V DC
Switching frequency
<= 250 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
0...30 mA no-load
Maximum delay first up
15 ms
Maximum delay response
2.5 ms
Maximum delay recovery
2.5 ms
Marking
CE
Height
40 mm
Length
40 mm
Width
70 mm
Net weight
0.149 kg
Product certifications
CSA
UL
UL
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to EN 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.5 cm
Package 1 Width
4.1 cm
Package 1 Length
4.5 cm
Package 1 Weight
166.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
42
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
6.178 kg
Unit Type of Package 3
PAL
Number of Units in Package 3
672
Package 3 Height
70.0 cm
Package 3 Width
60.0 cm
Package 3 Length
80.0 cm
Package 3 Weight
111.552 kg
REACh Regulation
EU RoHS Directive
Not applicable, out of EU RoHS legal scope
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Dimensions
Mounting
Head Positions
Setting-up

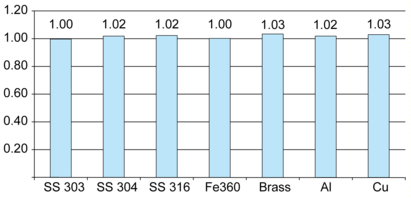

Sensing Distance Correction Factor
SS : Stainless steel
Fe : Steel
Al : Aluminium
Cu : Copper
Setting-up

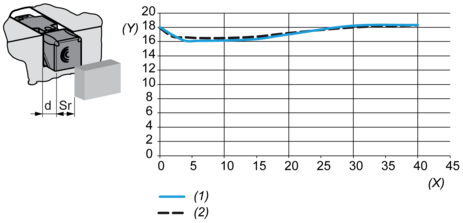

Operating Distance (According to the Sensor’s Level of Flush Mounting)
(y) Sensing distance (Sr) mm
(x) Sensing face/frame distance (d) mm
(1) Flush mounted in aluminium
(2) Flush mounted in Fe360
Wiring Schemes
4-Wire DC
Expand all
Documents & Downloads
Document name
Date
Size
Document name
Date
Size
11/29/2023
18.8 MB
11/29/2023
18.9 MB
Document name
Date
Size
12/19/2023
195.3 kB
12/19/2023
195.3 kB
Document name
Date
Size
11/23/2023
4.6 MB
