XS9C4A1PCG13

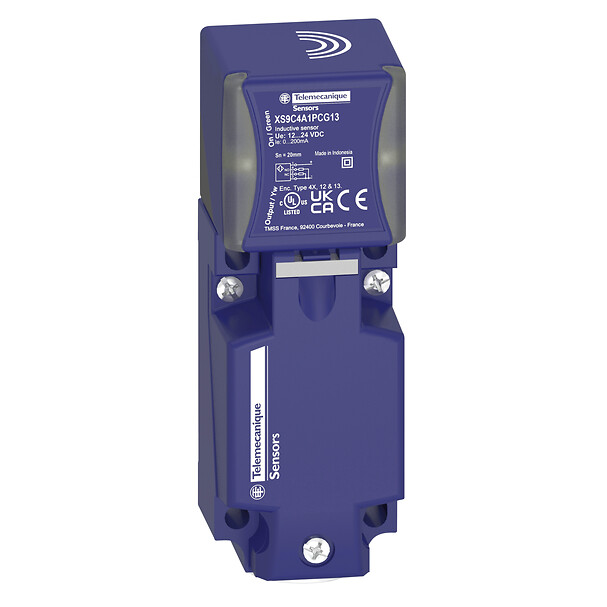

Inductive proximity sensors XS, inductive sensor XS9 40x40x117, PBT, Sn20 mm, 12...24 VDC, terminals

arrow

Commercialized

green premium
Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Device application
Welding machine
Factor 1 (Fe/Nfe)
Sensor name
XS9
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
4-wire
[Sn] nominal sensing distance
20 mm
Discrete output function
1 NO + 1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Screw-clamp terminals, 4 x 1.5 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
Detection face
5 positions turret head
Front material
PBT
Operating zone
0…16 mm
Differential travel
3...15% of Sr
Repeat accuracy
<= 3% of Sr
Electromagnetic compatibility
Immunity to magnetic fields - test level: 250 mT
Cable entry number
1 tapped entry for Pg 13.5 cable gland
Status LED
Supply on: 1 LED (green)
Output state: 1 LED (yellow)
Supply voltage limits
10…36 V DC
Switching frequency
<= 250 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
0...30 mA no-load
Maximum delay first up
15 ms
Maximum delay response
2.5 ms
Maximum delay recovery
2.5 ms
Marking
CE
Height
40 mm
Length
40 mm
Width
117 mm
Net weight
0.244 kg
Product certifications
UL
CSA
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
13.7 cm
Package 1 Width
4.3 cm
Package 1 Length
4.3 cm
Package 1 Weight
280.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
28
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
7.322 kg
Unit Type of Package 3
PAL
Number of Units in Package 3
448
Package 3 Height
70.0 cm
Package 3 Width
60.0 cm
Package 3 Length
80.0 cm
Package 3 Weight
125.44 kg
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Yes
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months

Expand all

Technical Drawings

Dimensions

epds

(1) : Pg 13.5 cable gland.

(2) : 2 holes Ø 5,45 mm / Ø 0.21 in. Tightening torque: < 1,5 Nm / < 13.3 Ib-in.

(3) : 3 screws M3,5. Tightening torque: < 1,2 Nm / < 10.6 Ib-in.

(4) : 2 alongated holes 5,4 x 7,4 mm / 0.21 x 0.29 in. Tightening torque: < 1,5 Nm / < 13.3 Ib-in".

Mounting

Head Positions

epds

Setting-up

Sensing Distance Correction Factor

epds

SS : Stainless steel

Fe : Steel

Al : Aluminium

Cu : Copper

Setting-up

Operating Distance (According to the Sensor’s Level of Flush Mounting)

epds

(y) Sensing distance (Sr) mm

(x) Sensing face/frame distance (d) mm

(1) Flush mounted in aluminium

(2) Flush mounted in Fe360

Wiring Schemes

4-Wire DC

epds
