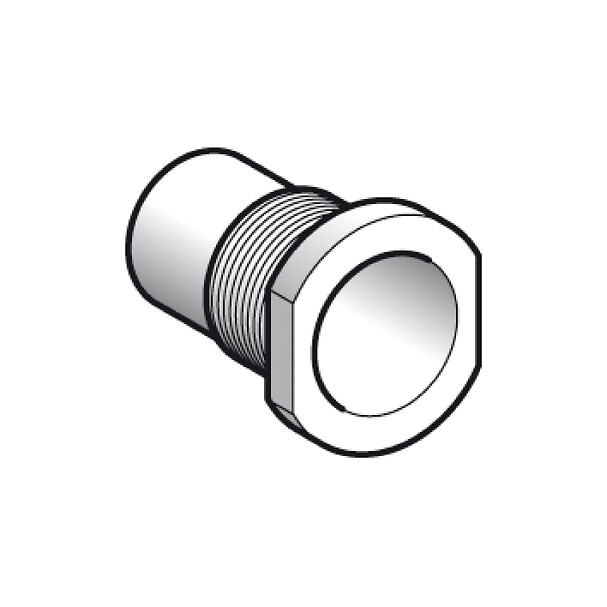

XTAZ30
Accessory for sensor, thread adaptor for convert M30to 1''1/2 12 UNF
Discontinued End of commercialization date : 21 April 2023 End of service date : 21 April 2023
Expand all
Datasheet
Accessory / separate part designation
Thread adaptor for convert M30 x 1.5 to 1"1/2 12 UNF
Accessory / separate part destination
Cylindrical M30 sensor
Accessory / separate part category
Protection accessories
Accessory / separate part type
Thread adaptor
Product compatibility
XT cylindrical M30
XS cylindrical M30
XS cylindrical M30
Net weight
0.035 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

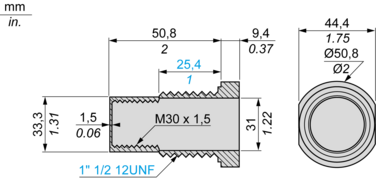

Dimensions
