XUFN02323

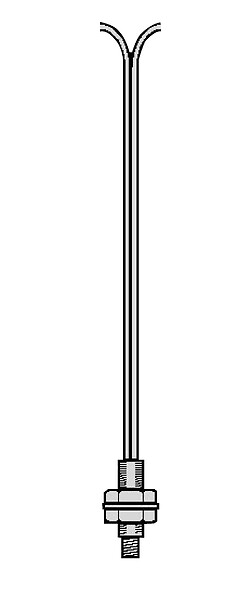

Photoelectric sensors XU, plastic fibre optic for sensor, diffuse, positioning, standard, 2 m, Sn15mm
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUF
[Sn] nominal sensing distance
0.015 m
End fitting type
M2.6 x 0.45, standard thread end fitting
Electronic sensor type
Photo-electric sensor
Sensor design
Fiber design
Product destination
XUDA
Optic fiber material
PMMA
Sheath material
PE
Detection system
Diffuse
Optic fiber use
Positioning
Optic fiber length
2 m
External diameter
1 mm
Minimum bending radius
10 mm
Thread type
M4 x 0.7
Optic fiber core
1 x Ø 0.5 mm + 4 x Ø 0.25 mm
Net weight
0.04 kg
Ambient air temperature for operation
-25…60 °C
Ambient air temperature for storage
-40…80 °C
Vibration resistance
7 gn (f= 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP64 conforming to IEC 60529
IP641 conforming to NF C 20-010
IP641 conforming to NF C 20-010
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.5 cm
Package 1 Width
13.5 cm
Package 1 Length
13.5 cm
Package 1 Weight
32.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
50
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
1.917 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
