XUK0AKSAL2

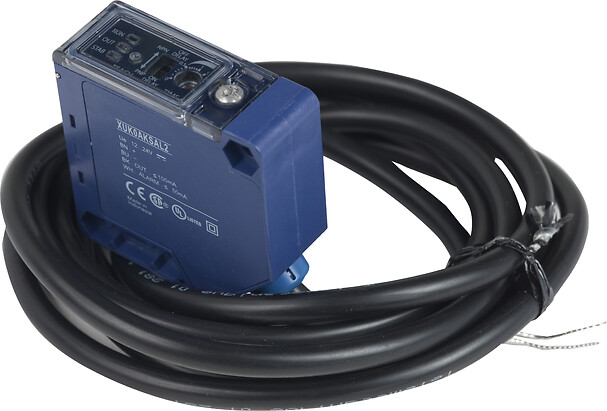

Photoelectric sensors XU, XUK, multi, Sn 0...30 m, 12...24 VDC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XUK0AKSAL2
Medium description
Photoelectric sensors XU, XUK, multi, Sn 0...30 m, 12...24 VDC, cable 2 m
Warranty
18 months
Country of origin
ID (Indonesia)
Depth
50 MILLIMETER
Width
18 MILLIMETER
Height
50 MILLIMETER
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Status LED
1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Cable length
2 METER
Add on output
With alarm output, <= 50 mA with overload and short-circuit protection
IP degree of protection
IP65 double insulation conforming to IEC 60529
Product weight
0.175 KILOGRAM
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Delay first up
200 MILLISECOND
Delay recovery
2 MILLISECOND
Delay response
2 MILLISECOND
Maximum voltage drop
<1.5 V (closed state)
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Density of package
0.3152 GRAM_PER_CUBIC_CENTIMETER
Current consumption
<= 35 mA no-load
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Electrical connection
Cable
Supply voltage limits
10-36 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum sensing distance
35 m thru beam, 0.28 m diffuse with background suppression, 1.2 m diffuse, 5.7 m polarised reflex
[Sn] nominal sensing distance
4-4 m polarised reflex need reflector XUZC50, 30-30 m thru beam need a transmitter XUK0AKSAL2T, 0.28-0.28 m diffuse with background suppression, 0.8-0.8 m diffuse
Ambient air temperature for storage max
70 CELSIUS
Ambient air temperature for storage min
-40 CELSIUS
Range of product
Telemecanique Photoelectric sensors XU
Material
Plastic
Setting-up
Self teaching
Output type
Solid state
Sensor name
XUK
Series name
General purpose multimode
Lens material
PMMA
Sensor design
Compact 50 x 50
Detection system
Multimode
Sensing range
0...30 m
Enclosure material
PBT
Supply circuit type
DC
Switching frequency
250 Hz
Discrete output type
PNP or NPN
Type of output signal
Discrete
Electronic sensor type
Photo-electric sensor
Wiring technique
3-wire
Discrete output function
1 NO or 1 NC programmable
Product specific application
Not applicable
[BMEcat] Reach info
True
[BMEcat] RoHS indicator
True
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant with exemption(s)
GTIN
3389110160383
Package 1 GTIN
3389110160383
Package 1 width
9.5 CENTIMETER
HS6 customs code (global)
853650
Package 1 height
13.2 CENTIMETER
Package 1 length
4.2 CENTIMETER
Package 1 weight
0.166 KILOGRAM
Volume of package 1
526.68 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings
Dimensions
Wiring Schemes
PNP Output
- (+) BN : Brown
- (-) BU : Blue
- (OUT/Output) BK : Black
- (Alarm) WH : White
Wiring Schemes
NPN Output
- (+) BN : Brown
- (-) BU : Blue
- (OUT/Output) BK : Black
- (Alarm) WH : White
- (+) BN : Brown
- (-) BU : Blue
- (OUT/Output) BK : Black
- (Alarm) WH : White
Detection Curves
With Thru-beam Accessory (Thru-beam)
Detection Curves
Without Accessory (Diffuse)
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Without Accessory (Diffuse with background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
With reflector (Polarised reflex)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
