XUK2SKSMM12T

Photo-electric sensor - XUKS - thru beam transmitter - Sn 15m - 10..30VDC - M12

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XUK2SKSMM12T is replaced by the following product:

XUK2AKEMM12T

Photoelectric sensors XU, XUK, thru beam transmitter, Sn 14 m, 10...30 VDC, M12

Quantity : 1

Characteristics
Technical Drawings
Documents & Downloads

Expand all

Datasheet

Range of product

Telemecanique Photoelectric sensors XU

Series name

Application food and beverage single mode

Electronic sensor type

Photo-electric sensor

Sensor name

XUK

Sensor design

Compact 50 x 50

Detection system

Thru beam

Material

Stainless steel

Type of output signal

Discrete

Wiring technique

4-wire

Supply circuit type

Electrical connection

1 male connector M12, 4 pins

Product specific application

Not applicable

Emission

Red thru beam

Enclosure material

Stainless steel 316

Lens material

PMMA

Output type

Solid state

Add on output

Without

[Us] rated supply voltage

12...24 V DC

Status LED

1 LED (yellow) for output state

Switching capacity in mA

<= 100 mA (overload and short-circuit protection)

Current consumption

<= 35 mA no-load

Maximum voltage drop

<1.5 V (closed state)

Delay first up

15 MILLISECOND

Delay response

2 MILLISECOND

Setting-up

Without sensitivity adjustment

Delay recovery

2 MILLISECOND

Vibration resistance

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP67 conforming to IEC 60529, IP69K conforming to DIN 40050

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov

Expand all

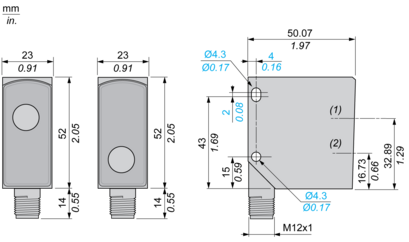

Technical Drawings
