Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, M12
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XUK8AKSNM12
Medium description
Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, M12
Warranty
18 months
Country of origin
ID (Indonesia)
Depth
50 MILLIMETER
Width
18 MILLIMETER
Height
50 MILLIMETER
Emission
Infrared laser, modulated diffuse with background suppression class 1
Status LED
1 LED (yellow) for output state, 1 LED (green) for supply
IP degree of protection
IP65 double insulation conforming to IEC 60529
Product weight
0.035 KILOGRAM
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Delay first up
300 MILLISECOND
Delay recovery
2 MILLISECOND
Delay response
2 MILLISECOND
Maximum voltage drop
<1.5 V (closed state)
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Density of package
0 GRAM_PER_CUBIC_CENTIMETER
Current consumption
<= 30 mA no-load
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-36 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum sensing distance
1 m diffuse with background suppression
Ambient air temperature for operation
-20-60 °C
[Sn] nominal sensing distance
1-1 m diffuse with background suppression
Ambient air temperature for storage max
70 CELSIUS
Ambient air temperature for storage min
-30 CELSIUS
Range of product
Telemecanique Photoelectric sensors XU
Material
Plastic
Setting-up
Sensitivity adjustment by potentiometer
Output type
Solid state
Sensor name
XUK
Series name
General purpose single mode
Lens material
PMMA
Sensor design
Compact 50 x 50
Kit composition
With XUZA51 bracket fixing
Detection system
Diffuse with background suppression
Sensing range
> 0.3...1 m
Enclosure material
PC
Supply circuit type
DC
Switching frequency
250 Hz
Discrete output type
PNP or NPN
Type of output signal
Discrete
Electronic sensor type
Photo-electric sensor
Wiring technique
3-wire
Discrete output function
1 NO or 1 NC programmable
Product specific application
Not applicable
[BMEcat] Reach info
True
[BMEcat] RoHS indicator
True
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant with exemption(s)
GTIN
3389110057782
Package 1 GTIN
3389110057782
Package 1 width
6 CENTIMETER
HS6 customs code (global)
853650
Package 1 height
4 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
0.126 KILOGRAM
Volume of package 1
240 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings
Dimensions
Dimensions
Bracket fixing
- (1) 1 elongated hole Ø 6 x 12
- (2) 1 elongated hole Ø 6 x 13
Wiring Schemes
Connector
Wiring Schemes
NO/NC programming
NO/NC programming
- BN : Brown
- BU : Blue
- BK : Black
Detection Curves
Variation of Usable Sensing Distance Su
Variation of Usable Sensing Distance Su
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
Detection Curves
Sensing Distance Adjustment
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
- (Y) Sensing distance (cm)
- (X) Number of turns on potentiometer
- (Z) Setting indicator position (mm)

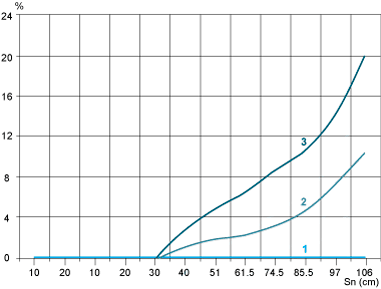

Detection Curves
Relative Difference in Sensing Distances According to Object Colour
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
- (Y) Sensing distance (cm)
- (X) Number of turns on potentiometer
- (Z) Setting indicator position (mm)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
