XUM2APCNL2R

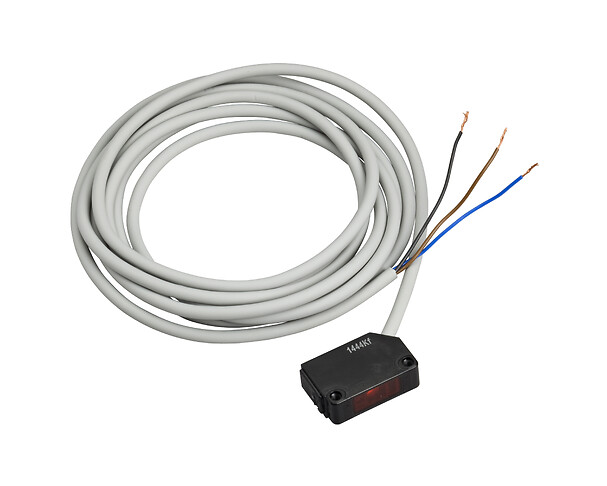

Photoelectric sensors XU, XUM, receiver, 15 m, 12...24 VDC, cable 2 m
END OF COMMERCIALISATION
XUM2APCNL2R is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor receiver
Sensor design
Miniature
Electrical connection
Cable
Material
Plastic
Wiring technique
3-wire
Detection system
Thru beam
Emission
Red thru beam
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
1000 Hz
Discrete output type
PNP
Delay response
0.5 MILLISECOND
Setting-up
Sensitivity adjustment
Current consumption
13 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (red) for indicator light, 1 LED (green) for instability and supply on
Sensing range
> 5...15 m
Maximum voltage drop
<3 V (closed state)
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
63 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Receiver's Dimensions
- R : Reception
- (1) Output state LED on front face
Mounting and Clearance
- (1) Configuration switch
- (2) Output state LED
- (3) Stability and power on LED
Connections and Schemes
PNP
- BN : Brown
- BU : Blue
- BK : Black

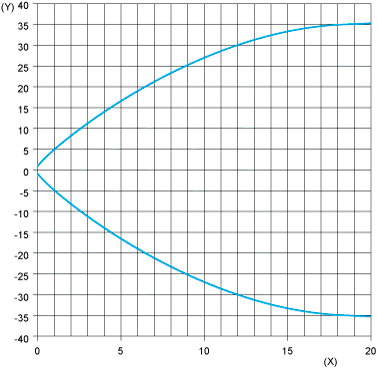

Detection Curves
- (Y) Parallel movement (cm)
- (X) Distance (m)
Expand all
