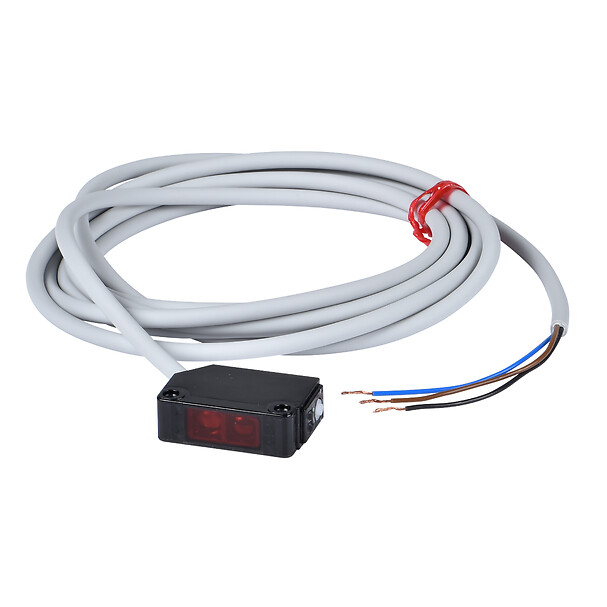

XUM9APCNL2
Photoelectric sensors XU, XUM, polarised, Sn 5 m, 12...24 VDC, cable 2 m
END OF COMMERCIALISATION
XUM9APCNL2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
Cable
Material
Plastic
Wiring technique
3-wire
Detection system
Polarised reflex
Emission
Red polarised reflex
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
1000 Hz
Discrete output type
PNP
Delay response
1 MILLISECOND
Setting-up
Sensitivity adjustment by potentiometer
Current consumption
<= 10 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (green) for instability, 1 LED (orange) for output state
Sensing range
> 1...5 m
Maximum voltage drop
<2 V (closed state)
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
50 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
20 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
60 GRAM
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.025 KILOGRAM
Unit type of package 3
PAL
Number of units in package 3
960
Package 3 height
60 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
960 CENTIMETER
Package 3 weight
60.48 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- R : Reception
- T : Transmission
- (1) Potentiometer
Mounting and Clearance
- (1) Configuration switch
- (2) Output state LED
- (3) Stability and power on LED
- (4) Adjustment potentiometer
Connections and Schemes
PNP
- BN : Brown
- BU : Blue
- BK : Black

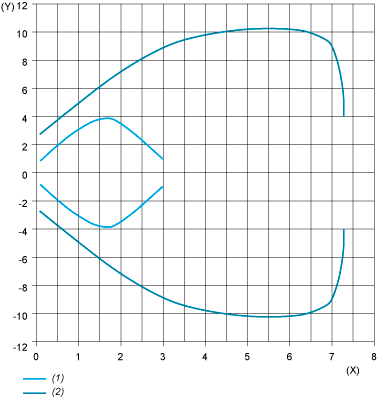

Detection Curves
- (1) XUZC08
- (2) XUZC50
- (Y) Parallel movement (cm)
- (X) Distance (m)
