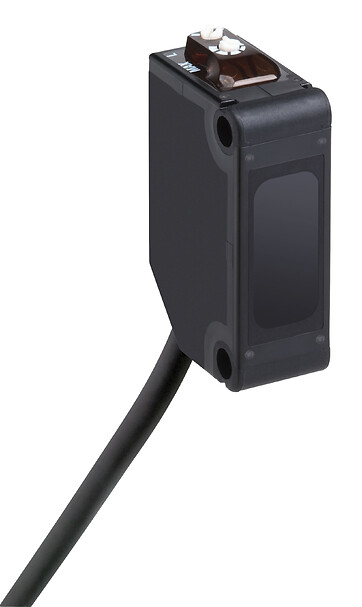

XUMTAPCNL03M12
Photoelectric sensors XU, XUM, reflex, Sn 2 m, 12...24 VDC, M12, cable 0.3 m
End of commercialisation End of commercialization date : End of service date :
XUMTAPCNL03M12 is replaced by the following product:
XUMTARAYP015
Photoelectric sensors XUMT, Transparent reflex, Plastic, Sn 2m, IO-Link, Pigtail M12 15cm
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
Application packaging
Product specific application
Detection of transparent object
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
Remote male connector M12, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Reflex
Emission
Infrared reflex
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
1 MILLISECOND
Setting-up
Sensitivity adjustment by potentiometer
Current consumption
<= 10 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PC
Status LED
1 LED (green) for instability, 1 LED (orange) for output state
Sensing range
> 0...2 m
Maximum voltage drop
<2 V (closed state)
Delay first up
100 MILLISECOND
Shock resistance
50 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
20 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.74 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

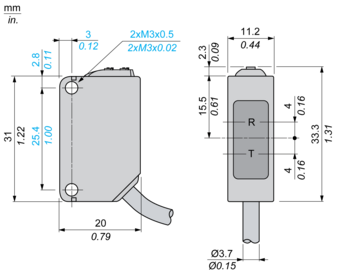

Dimensions

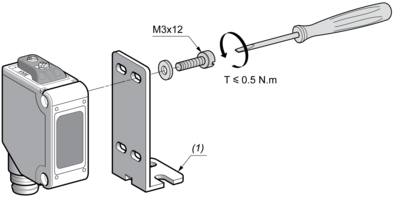

Mounting
