Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 R40 H181cm D4 12 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Safety light curtain type 4
Device short name
XUSL4M
Output type
2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application
For hand protection
Type of start
Automatic
manual
manual
Control type
Selected by wiring
Detection system
Transmitter-receiver system
Response time
17.5 ms
Kit composition
adjustable mounting bracket(s), 1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM
Emission
IR LED 950 nm
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1
Current consumption
35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver
Output voltage
24 V
Output circuit type
DC
Voltage drop
<0.5 V
Local signalling
1 multi-colour LED transmitter, 10 dual colour LEDs receiver
Electrical connection
1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 1 male connector M12 12 pins receiver, 3 female connectors M12 5 pins receiver
Function available
Test, muting, LED display of operating modes and faults
Material
Aluminium: casing, polycarbonate: front panel, polypropylene: end caps
Housing colour
Red RAL 3000
Fixing mode
By fixing brackets
Offer type
Standard distance
Directives
89/336/EEC - electromagnetic compatibility
89/655/EEC - work equipment
98/37/EEC - machinery
89/655/EEC - work equipment
98/37/EEC - machinery
Product certifications
CE
cULus
TÜV
cULus
TÜV
Safety level
Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1
Environmental characteristic
Resistance to light disturbance conforming to IEC 61496-2
Safety reliability data
PFHd = 2.30E-8 1/h conforming to IEC 61508
IP degree of protection
IP65, IP67
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14 CENTIMETER
Package 1 width
19.5 CENTIMETER
Package 1 length
198 CENTIMETER
Package 1 weight
12 KILOGRAM
Package 2 height
14 CENTIMETER
Package 2 width
19.5 CENTIMETER
Package 2 length
198 CENTIMETER
Package 2 weight
10.2 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

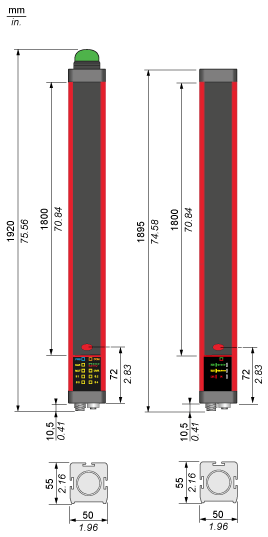

Dimensions
