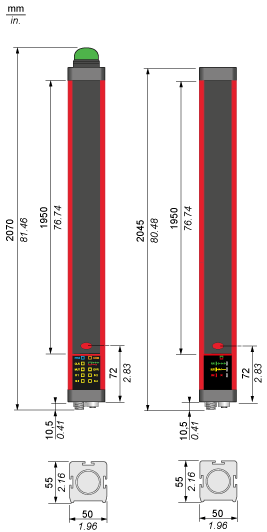

XUSL4MA40H196N
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, integrated muting hardware/soft config T4 R40 H196cm D4 12 m
COMMERCIALISED
Expand all
Datasheet
Range of product
TE SAFETY LGT CRTNS XUSL
Product or component type
SAFETY LIGHT CURTAIN TYPE 4
Device short name
XUSL4M
Output type
2 safety outputs OSSD solid-state PNP (arc suppression)
Product specific application
FOR HAND PROTECTION
Type of start
AUTOMATIC
MANUAL
MANUAL
Control type
Selected by wiring
Detection system
TRANSMITTER RECEIVER SYSTEM
Response time
18.5 ms
Kit composition
adjustable mounting bracket(s),
1 receiver,
1 transmitter,
1 user guide with certificate of conformity on CD-ROM
1 receiver,
1 transmitter,
1 user guide with certificate of conformity on CD-ROM
Emission
IR LED 950 nm
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Power supply conforming to IEC 61496-1,
power supply conforming to IEC 60204-1
power supply conforming to IEC 60204-1
Current consumption
35 mA no-load transmitter,
85 mA no-load receiver,
900 mA with maximum load receiver
85 mA no-load receiver,
900 mA with maximum load receiver
Output voltage
24 V
Output circuit type
DC
Voltage drop
<0.5 V
Local signalling
1 multi-colour LED transmitter,
10 dual colour LEDs receiver
10 dual colour LEDs receiver
Electrical connection
1 male connector M12 5 pins transmitter,
2 female connectors M12 5 pins transmitter,
1 male connector M12 12 pins receiver,
3 female connectors M12 5 pins receiver
2 female connectors M12 5 pins transmitter,
1 male connector M12 12 pins receiver,
3 female connectors M12 5 pins receiver
Function available
Test,
muting,
LED display of operating modes and faults
muting,
LED display of operating modes and faults
Material
Aluminium: casing,
polycarbonate: front panel,
polypropylene: end caps
polycarbonate: front panel,
polypropylene: end caps
Housing colour
Red RAL 3000
Fixing mode
BY FIXING BRACKETS
Offer type
STANDARD DISTANCE
Directives
89 336 EEC EMC
89 655 EEC WORK EQUIPMENT
98 37 EEC MACHINERY
89 655 EEC WORK EQUIPMENT
98 37 EEC MACHINERY
Product certifications
CE
CULUS
TUV
CULUS
TUV
Safety level
Type 4 conforming to IEC 61496-1,
SIL 3 conforming to IEC 61508,
SILCL 3 conforming to IEC 62061,
category 4 conforming to EN/ISO 13849-1,
PL = e conforming to EN/ISO 13849-1
SIL 3 conforming to IEC 61508,
SILCL 3 conforming to IEC 62061,
category 4 conforming to EN/ISO 13849-1,
PL = e conforming to EN/ISO 13849-1
Environmental characteristic
Resistance to light disturbance conforming to EN/IEC 61496-2
Safety reliability data
PFHd = 2.38E-8 1/h conforming to IEC 61508
IP degree of protection
IP65,
IP67
IP67
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.0000 CENTIMETER
Package 1 width
20.0000 CENTIMETER
Package 1 length
215.0000 CENTIMETER
Package 1 weight
12.0000 KILOGRAM
For all Reach Rohs enquiries contact us at
WEEE
WEEE
