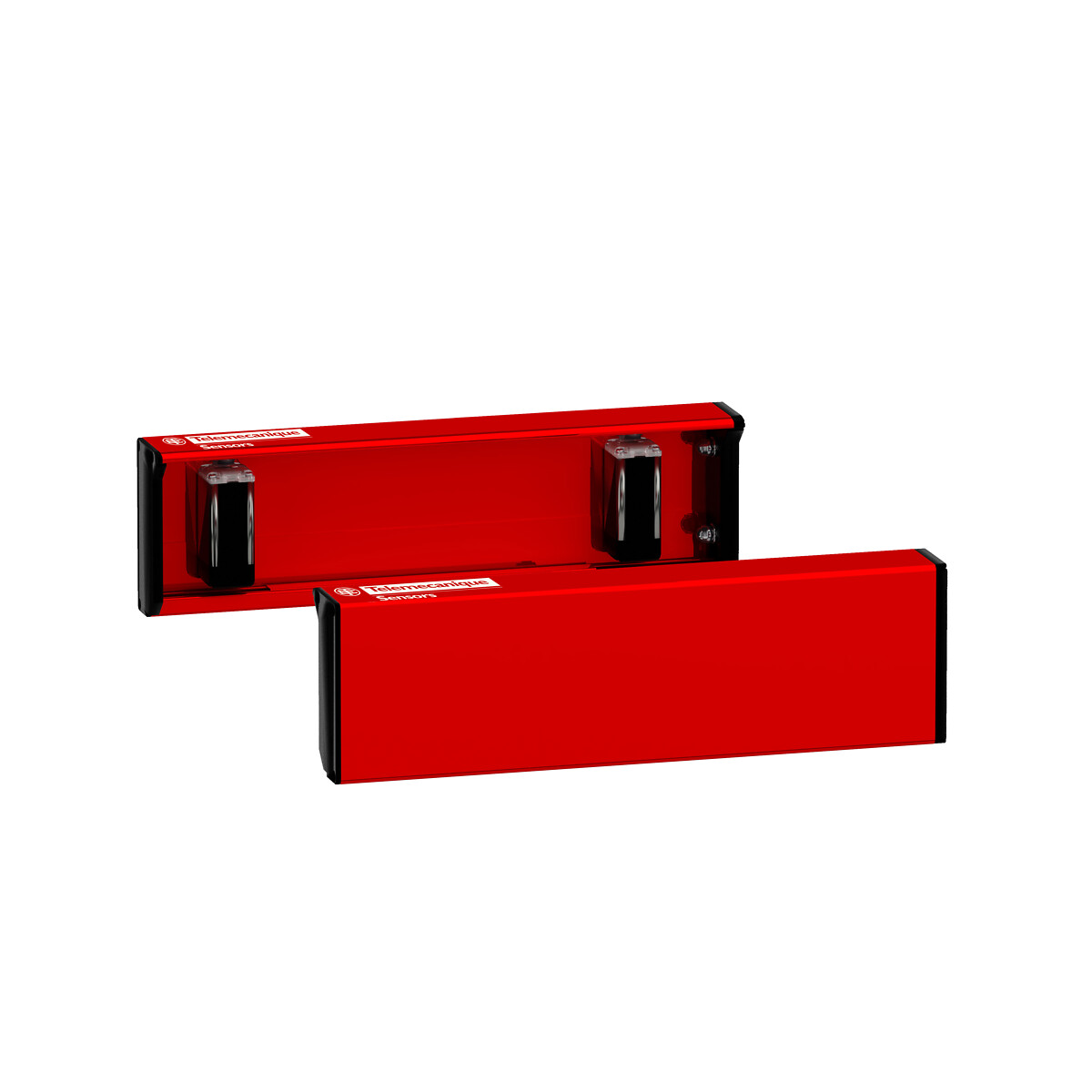

XUSZAML2XP
Multi beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm L 2 parallel beams
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Multi-beam prebuilt muting arms
Device short name
XUSZAM
Output type
2 discrete solid-state PNP (NO)
Product compatibility
XUSL4M
Detection system
Through beam
Product specific application
Conveyor system exit direction, conveyor system normal speed
Specific application of photoelectric detector
Detection of opaque parts
sensing range
0...10 cm space between package, > 32 cm space between package
Response time
< 100 ms
Kit composition
transmitter + receiver, quick start guide
Emission
IR LED 940 nm
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Via connector
Current consumption
42 mA
Output voltage
24 V
Output circuit type
DC
Voltage drop
<0.5 V
Switching capacity in mA
100 mA
Local signalling
2 yellow LED receiver
Housing colour
Red RAL 3000
Directives
89/336/EEC - electromagnetic compatibility
98/37/EEC - machinery
98/37/EEC - machinery
Product certifications
CE
Safety reliability data
PFHd = 2.73E-7 1/h
IP degree of protection
IP65
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.5 CENTIMETER
Package 1 width
20 CENTIMETER
Package 1 length
45.5 CENTIMETER
Package 1 weight
2.222 KILOGRAM
Unit type of package 2
S04
Number of units in package 2
1
Package 2 height
30 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
3.26 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

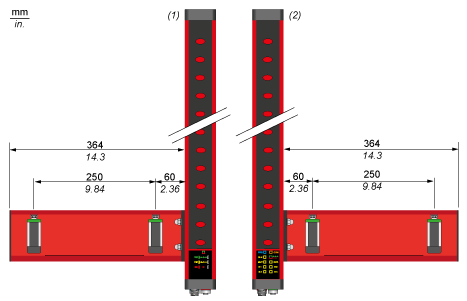

Dimensions
- (1) : Transmitter
- (2) : Receiver
