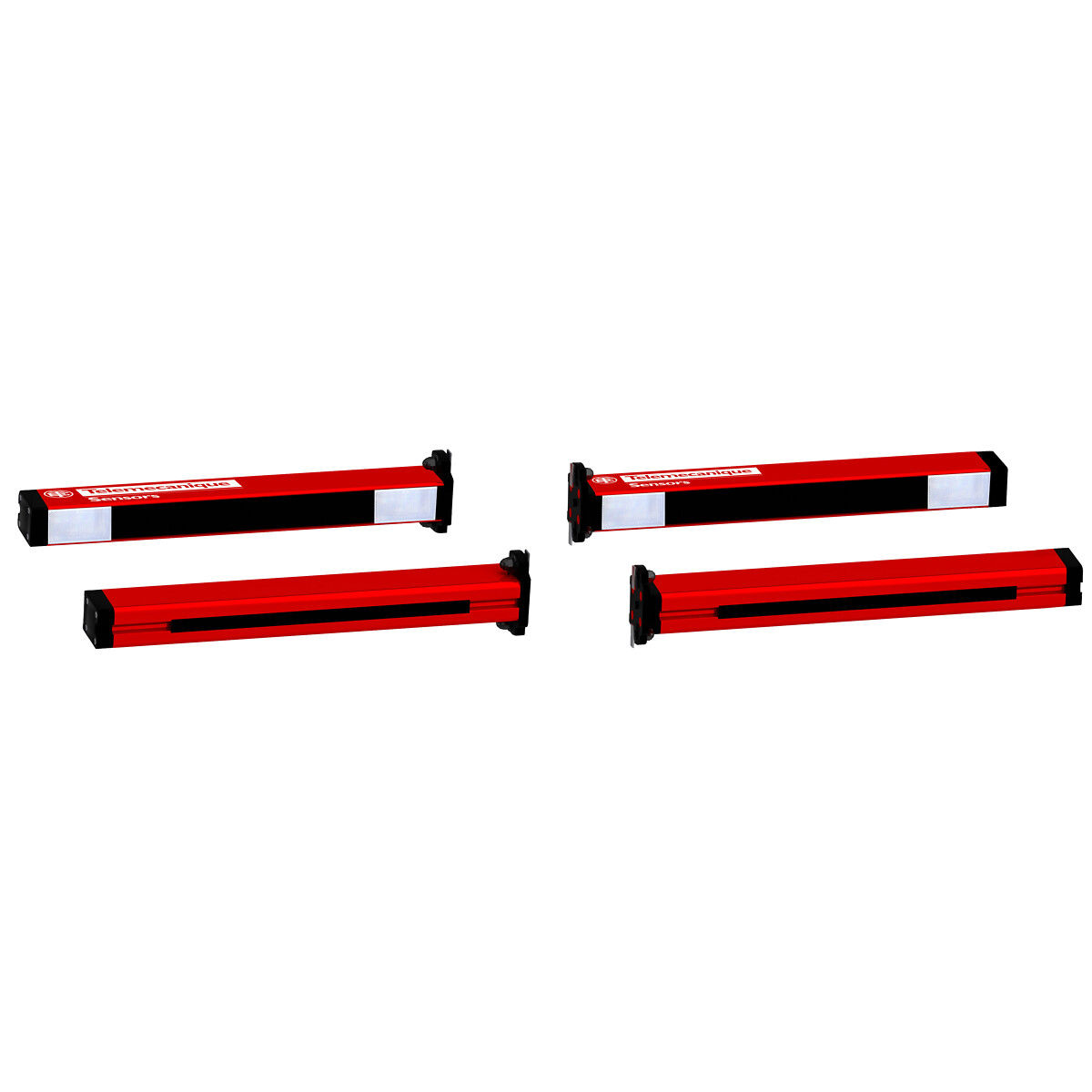

XUSZAST4PPT
Single beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm T 4parallel transparent material
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Single-beam prebuilt muting arms
Device short name
XUSZAS
Output type
4 discrete solid-state PNP (NO)
[Sn] nominal sensing distance
0…2 m
Number of beams
1
Product compatibility
XUSL4M
Detection system
Polarised reflex
Product specific application
Conveyor system entry/exit direction
Conveyor system normal speed
Conveyor system normal speed
Specific application of photoelectric detector
Detection of transparent parts
Sensing range
> 75 cm pallet length
Response time
< 100 ms
Kit composition
reflex system photo-electric sensor
quick start guide
quick start guide
Emission
IR LED
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Via connector
Current consumption
42 mA
Output voltage
24 V
Output circuit type
DC
Maximum voltage drop
<0.5 V
Switching capacity in mA
100 mA
Local signalling
4 yellow LED receiver
Housing colour
Red RAL 3000
Directives
98/37/EEC - machinery
89/336/EEC - electromagnetic compatibility
89/336/EEC - electromagnetic compatibility
Product certifications
CE
Safety reliability data
PFHd = 2.73E-7 1/h
Ambient air temperature for operation
-30…55 °C
Ambient air temperature for storage
-30…70 °C
Relative humidity
0…95 % without condensation
IP degree of protection
IP65
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10…55 Hz) conforming to IEC 61496-1
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14.5 cm
Package 1 Width
20.0 cm
Package 1 Length
87.0 cm
Package 1 Weight
4.31 kg
Unit Type of Package 2
P12
Number of Units in Package 2
1
Package 2 Height
45.0 cm
Package 2 Width
80.0 cm
Package 2 Length
120.0 cm
Package 2 Weight
11.31 kg
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

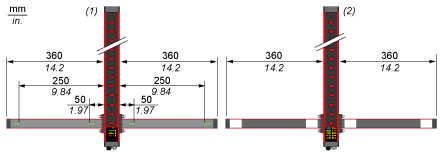

Dimensions
