XUSZBSS4
Telemecanique Safety light curtains XUSL, Swivel bracket with end caps, 4 fixing brackets set
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part type
Swivel mounting support
Product compatibility
XUSL2E
XUSL4E
XUSL4E
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Kit composition
4 x swivel bracket(s), end cap(s)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.8 CENTIMETER
Package 1 width
10.4 CENTIMETER
Package 1 length
17 CENTIMETER
Package 1 weight
0.218 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.505 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

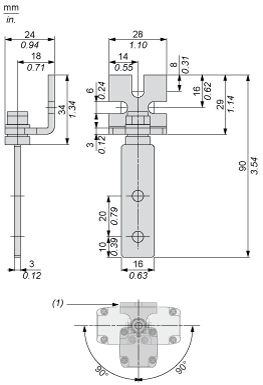

Dimensions
- (1) Swivel bracket

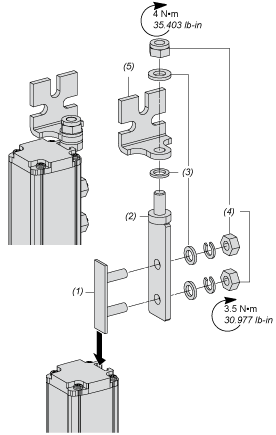

Mounting and Clearance
- (1) Insert
- (2) Pivot
- (3) Washer
- (4) Nut
- (5) Swivel bracket
