XUSZMD061
Telemecanique Safety light curtains XUSL, Mirrors for light curtains with fastening systems 715 mm, Hp = 610 mm
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Adaptation accessories
Accessory / separate part type
90° mirror adaptor
Product compatibility
XUSL.E...61 with 2 beams
Accessory / separate part destination
Safety light curtain type 2
Safety light curtain type 4
Safety light curtain type 4
Material
Glass
Height
715 mm
Height protected
610 mm
Sensing distance reduction coefficient
0.85 Sn
Net weight
2.4 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14.0 cm
Package 1 Width
78.0 cm
Package 1 Length
20.0 cm
Package 1 Weight
4.0 kg
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

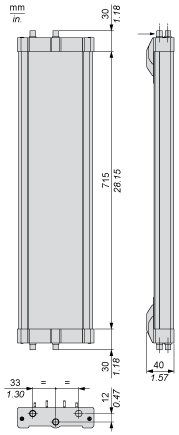

Technical Drawings
Dimensions
Expand all
Documents & Downloads
Document name
Date
Size
Document name
Date
Size
11/29/2023
6.6 MB
11/29/2023
7.0 MB
Document name
Date
Size
2/2/2024
195.3 kB
2/2/2024
195.3 kB
Document name
Date
Size
1/23/2024
2.2 MB
Document name
Date
Size
11/23/2023
1.7 MB
11/23/2023
1.7 MB
11/23/2023
1.4 MB
Document name
Date
Size
11/23/2023
4.8 MB
Expand all
Related products & accessoires
XUSL2E30H061NWC
Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL IP69K Hand protection w/o Heating, Std range, Hp = 610 mm, R=30 mm
XUSL4E30H061NM
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Master for hand protection, Hp = 610 mm, R=30 mm
