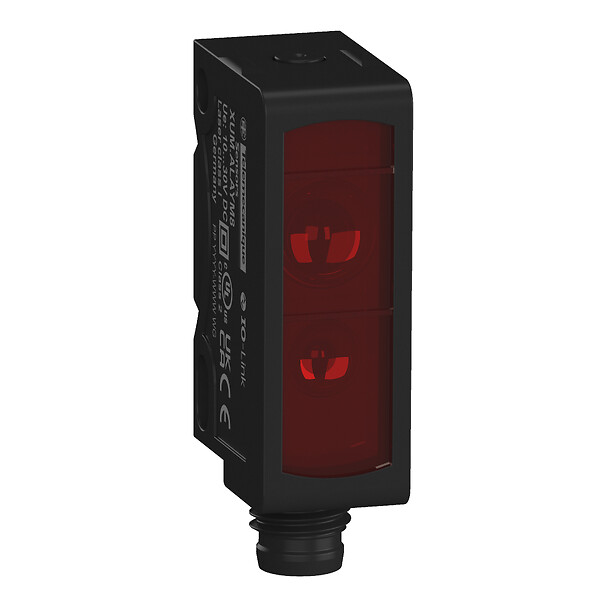

Photoelectric sensors XU, XUY 929, polarised, laser, Sn 1 m, 12...24 VDC, M8
END OF COMMERCIALISATION
XUYBCO929LSP is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUY
Series name
Application assembly
Product specific application
Monitoring of small parts on production machine
setting up of sensors
setting up of sensors
Enclosure material
ABS
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
1 male connector M8, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Polarised reflex
Emission
Red LED, pulsed - class 2 conforming to IEC 825-1
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Setting-up
Using teach button or remote teaching
Current consumption
< 25 mA no-load
Status LED
Supply on/dirty: 1 LED (green), output state: 1 LED (yellow)
Output type
Solid state
Switching capacity in mA
100 mA (overload and short-circuit protection)
Spot diameter
<= 0.7 mm
Sensing range
> 0.3...1 m
Voltage drop
<2.4 V (closed state)
Delay response
3 µs
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.3 CENTIMETER
Package 1 width
6.1 CENTIMETER
Package 1 length
9.6 CENTIMETER
Package 1 weight
19 GRAM
Unit type of package 2
S01
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
415 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 2 elongated holes Ø 3.2 x 4.2
- (2) Transmitter optical axis
- (3) Receiver optical axis
Wiring Schemes
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- (+) BN : Brown
- WH : White
- (-) BU : Blue
- (Output) BK : Black
- (1) Connected to +: external teaching, connected to –: locking of functions
- (2) Output 100 mA max.
