XUZASK004
Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK laser + TOF, angle fine adjustable
COMMERCIALISED
Expand all
Datasheet
Commercial Reference
XUZASK004
PIM CR type
Standard Commercial Reference
Product sub-type
Standard CR
Product typology
Referenced Sold Product
Short description
ANGLE BRACKET FIXING AND FINE ADJUSTMENT
Medium description
Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK laser + TOF, angle fine adjustable
Website publication
1
Product manager
Abdelaziz M'FAREJ
Base unit of measure
PCE
ERP-Print medium description
ANGLE BRACKET FIXING AND FINE ADJUSTMENT FOR XUK LASER AND TOF
ETIM classification
ETIM 9 - EC002594 - Accessories/spare parts for position switches
***TABLE***
Commercial status
08 - Commercialised
Warranty
18 months
Country of origin
DE (Germany)
Density of package
0.3156 GRAM_PER_CUBIC_CENTIMETER
[BMEcat] Reach info
False
[BMEcat] RoHS indicator
True
Equipment category according to Annex I of EU RoHS 2011/65/EU
Component
1907/2006 - Reach regulation - Annex XVII status
Free of any substance listed in Annex XVII above threshold
California proposition
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EU RoHS 2011/65/EU compliance status
Compliant without exemption
1907/2006 - Reach regulation - EC number(s)
-
1907/2006 - Reach regulation - CAS number(s)
-
1907/2006 - Reach regulation - SCIP ID
-
1907/2006 - Reach regulation - SVHC content(s)
None
1907/2006 - Reach regulation - Specific safe conditions of use
None
1907/2006 - Reach regulation - Candidate list version
June 2025
2011/65/EU - RoHS - Exemptions according to Annex III
-
GTIN
3389119621311
EAN13
3389119621311
Dangerous goods code
Not Applicable
Package 1 GTIN
3389119621311
Package 1 width
7.1 CENTIMETER
HS6 customs code (global)
732690
Package 1 height
5.5 CENTIMETER
Package 1 length
9.9 CENTIMETER
Package 1 weight
0.122 KILOGRAM
Volume of package 1
386.595 CUBIC_CENTIMETER
Indivisible sale quantity
1
Number of units in package 1
1
Unit type of package 1
PCE
Package 1 bare product quantity
1
Expand all
Technical Drawings
Dimensions

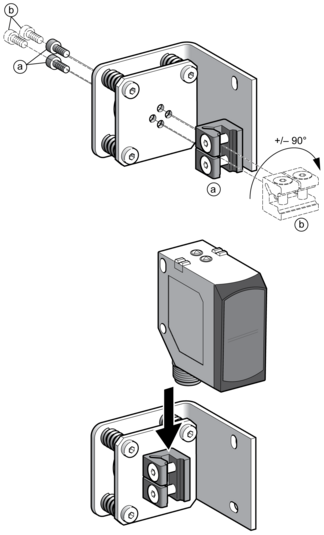

Mounting
