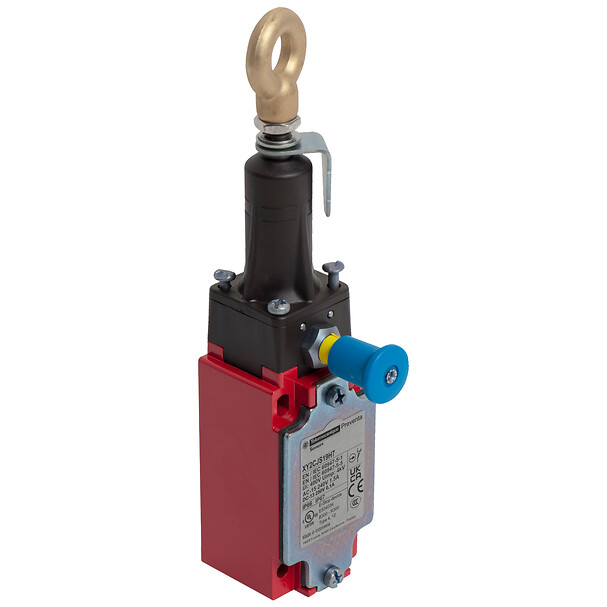

XY2CJS19H7
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, 1/2" NPT
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Product or component type
Latching emergency stop rope pull switch
Device short name
XY2C
Housing colour
Red RAL 3000
Overvoltage category
Class I conforming to IEC 61140
Local signalling
Color indicator
Body material
Zamak
Head material
PA (polyamide)
Cover material
Galvanised steel
Reset
By pull button
Contacts type and composition
2 NC + 1 NO
Contact operation
Slow-break
Trigger cable anchor point
RH or LH side
Connections - terminals
Screw clamp terminal, 1 x 0.34...1 x 1 mm², screw clamp terminal, 1 x 0.34...2 x 0.75 mm²
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data
B10d = 500000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear
Marking
CE
Positive opening
With conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(31-32)NC
(21-22)NC
(31-32)NC
Compatibility code
XY2CJ
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-5
ISO 13850
machinery directive 2006/42/EC
UL 508
work equipment directive 2009/104/EC
Product certifications
UL category NISD emergency stop devices, CSA, CCC, EAC
Protective treatment
TC
Vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.711 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
7/18/2024
126528
7/18/2024
127094
7/18/2024
128717
7/18/2024
129045
7/18/2024
163429
7/18/2024
184522
7/18/2024
1870724
7/18/2024
21688
7/18/2024
27000
7/18/2024
281278
7/18/2024
441569
7/18/2024
45626
7/18/2024
46304
7/18/2024
46364
7/18/2024
52416
Document name
Date
Size
2024-12-02
256729340
2024-12-02
4814059
Document name
Date
Size
2025-02-28
244086
2025-02-28
237743
Document name
Date
Size
Document name
Date
Size
2024-02-07
557494
Document name
Date
Size
2023-05-01
3351877
Expand all
Related products & accessories

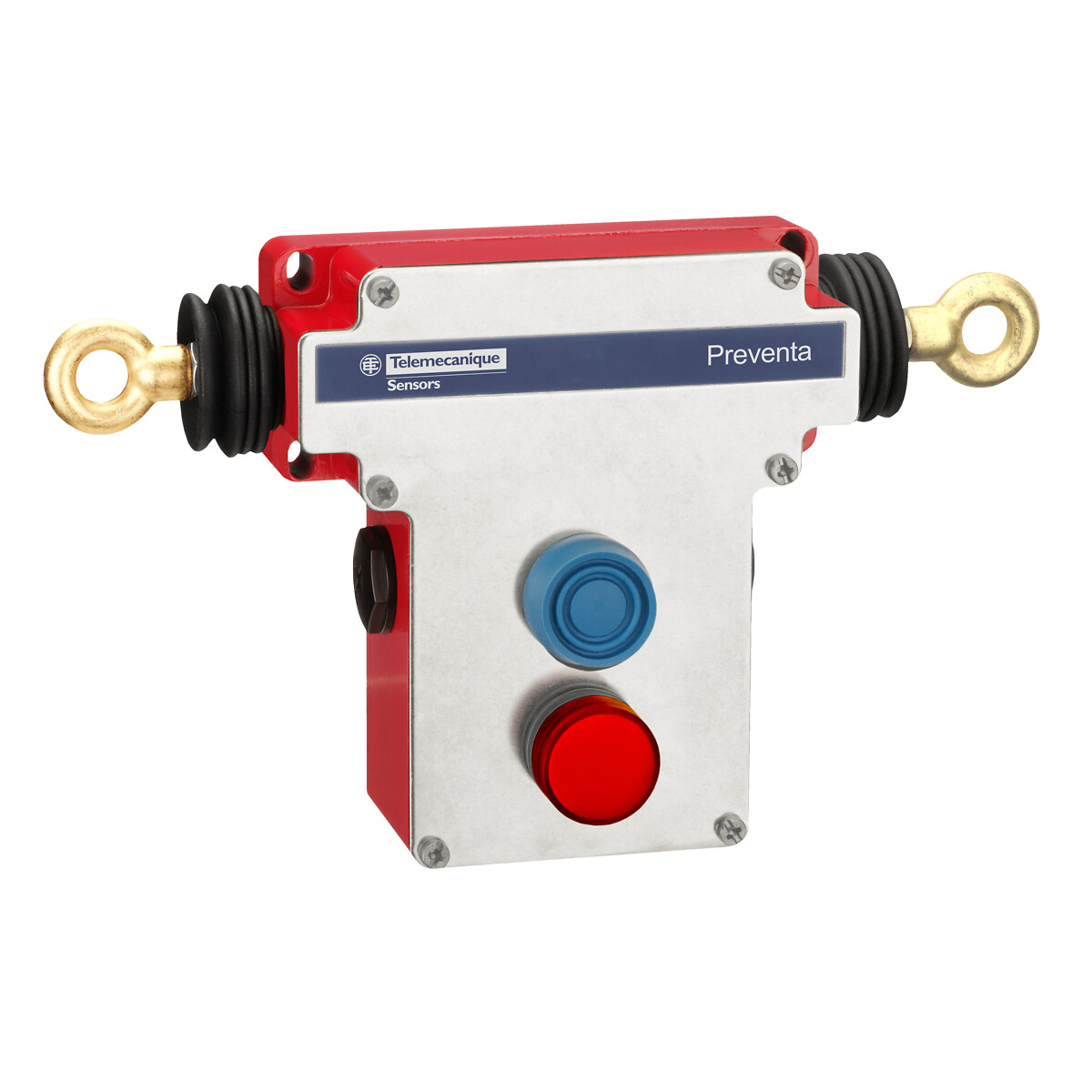

XY2CEDA296H7
Dual emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e 2x(1NC+1NO), 1/2" NPT, boot. pb, pilot light

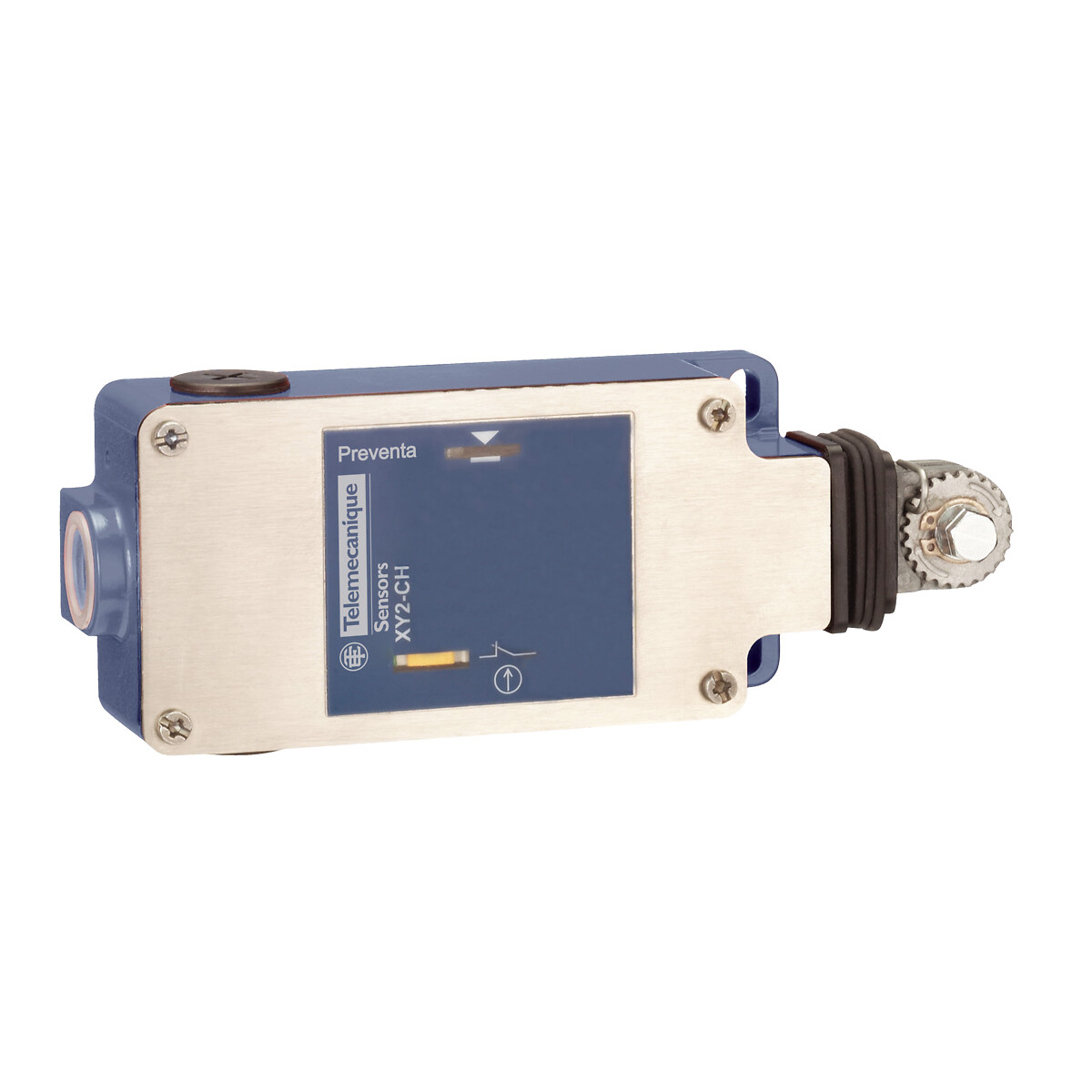

XY2CH13150H7
