XZCP1241L2

Pre wired connectors XZ, elbowed female, M12, 4 pins, cable PUR 2 m

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Technical Drawings
Documents & Downloads
Related products & accessories

Expand all

Technical Drawings

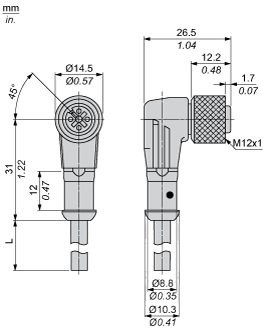

Dimensions

epds

L : Length of cable

Connections and Schemes

Connector

epds

BN : Brown
BK : Black
BU : Blue
WH : White
