XZCP57V12L10

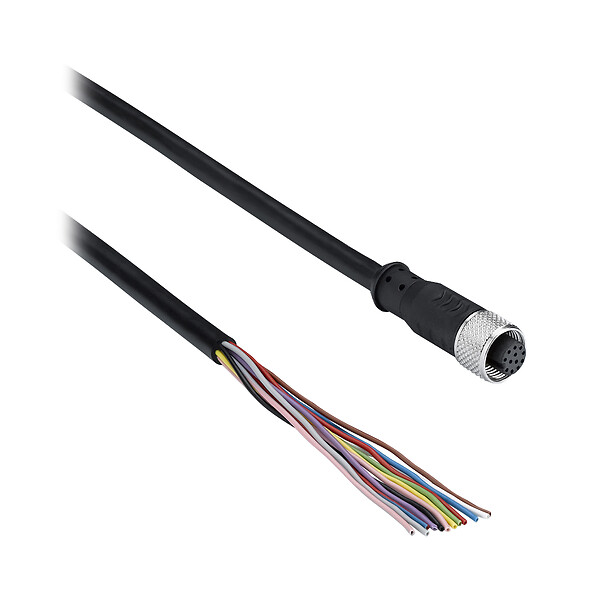

M12 12 pin straight female connector 10 m safety light curtain integrated muting
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Cabling components
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Series name
General purpose
Electrical connection
Straight female connector M12, 12 pins
Cable connector fixing
Screw-on
Collar material
Metal
Status LED
Without
Cable length
10 m
Cable outer diameter
6.5 mm
Cable composition
12 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
30 V DC
[In] rated current
1.5 A
Contact resistance
10 mOhm
Minimum insulating resistance
100 MOhm
Net weight
0.73 kg
IP degree of protection
IP67
Ambient air temperature for operation
-30…80 °C static
Ambient air temperature for storage
-30…80 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.000 cm
Package 1 Width
20.000 cm
Package 1 Length
20.000 cm
Package 1 Weight
610.000 g
Unit Type of Package 2
S03
Number of Units in Package 2
8
Package 2 Height
30.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
6.203 kg
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
