XZCPB12P15L10

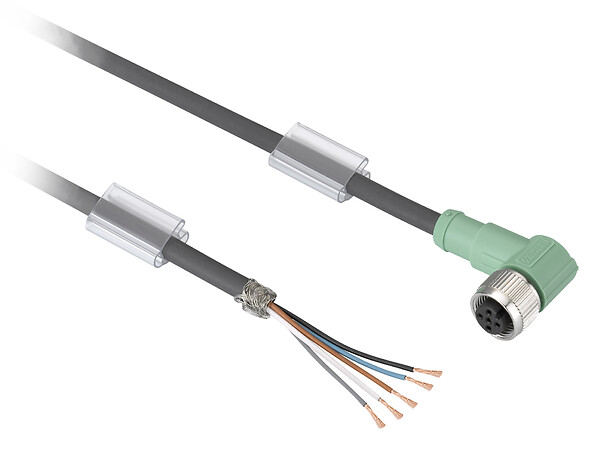

Pre wired connectors XZ, RS422, elbowed female, M12, 5 pins, cable PUR 10 m
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Cabling components
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Series name
Application
Electrical connection
Elbowed female connector M12, 5 pins
Cable connector fixing
Screw-on
Collar material
Metal
Status LED
Without
Cable length
10 m
Cable outer diameter
5.9 mm
Cable composition
5 x 0.34 mm²
Wire insulation material
PUR
[Ue] rated operational voltage
60 V DC
[In] rated current
4 A
Contact resistance
5000 µOhm
Minimum insulating resistance
70 MOhm
Net weight
0.5 kg
IP degree of protection
IP65
IP69K
IP67
IP69K
IP67
Ambient air temperature for operation
-40…80 °C static
-25…80 °C flexing
-25…80 °C flexing
Ambient air temperature for storage
-40…80 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.000 cm
Package 1 Width
20.000 cm
Package 1 Length
20.000 cm
Package 1 Weight
522.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
5
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
3.024 kg
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
