XZCR1501040G2

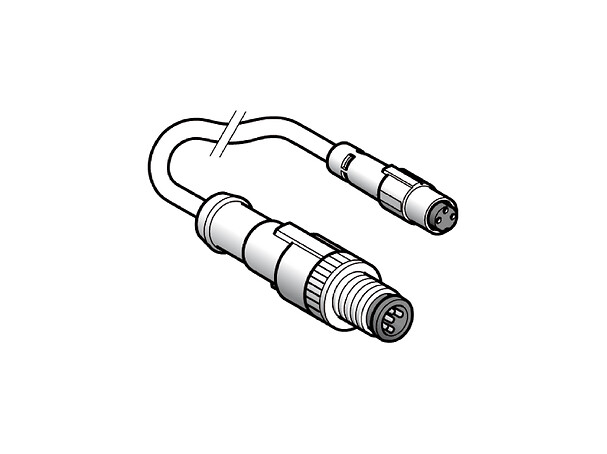

Jumper cable XZ, male straight M12 3 pin, female straight Ø 8 mm 3 pin, PUR 2 m
Commercialized
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 3 pins straight connector with screw-on
Jumper cable end 2
Ø 8 mm female 3 pins straight connector with clip-on
Cable composition
3 x 0.34 mm²
Cable length
2 m
Wire insulation material
PUR
Cable outer diameter
5.2 mm
[Ue] rated operational voltage
60 V AC
75 V DC
75 V DC
[In] rated current
4 A
Insulation resistance
>= 1000 MOhm
Maximum resistance across terminals
5000 mOhm
Net weight
0.08 kg
IP degree of protection
IP67
Product certifications
cULus
Ambient air temperature for operation
-35…90 °C static
-5…90 °C flexing
-5…90 °C flexing
Ambient air temperature for storage
-35…100 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.000 cm
Package 1 Width
20.000 cm
Package 1 Length
20.000 cm
Package 1 Weight
62.000 g
Unit Type of Package 2
S02
Number of Units in Package 2
40
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
3.088 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

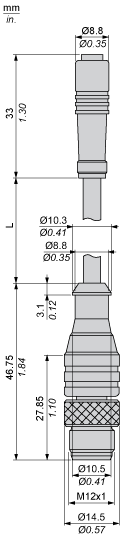

Dimensions
- L : Lenght of cable
