XZCR1511064D5

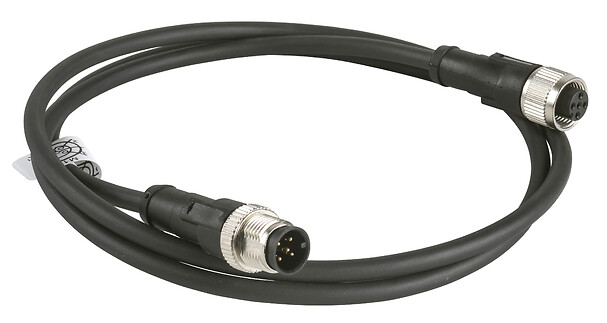

Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PUR 5 m
COMMERCIALISED
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 5 pins straight connector with screw-on
Jumper cable end 2
M12 female 5 pins straight connector with screw-on
Cable composition
4 x 0.34 mm² + 1 x 0.5 mm²
Wire insulation material
PUR
[Ue] rated operational voltage
30 V AC, 36 V DC
Insulation resistance
1000 MOhm
Resistance across terminals
5000 MILLIOHM
IP degree of protection
IP65
IP67
IP69K
IP67
IP69K
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
22 CENTIMETER
Package 1 length
25 CENTIMETER
Package 1 weight
0.2 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.328 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
