XZCR2705037R2

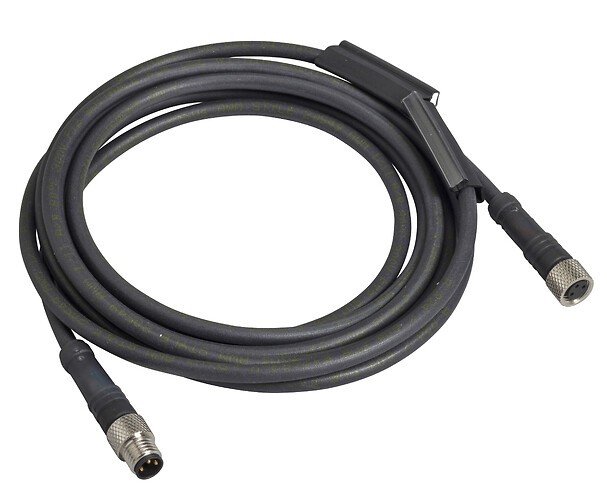

Jumper cable XZ, male straight M8 3 pin, female straight M8 3 pin, PUR 2 m
Commercialised
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M8 male 3 pins straight connector with screw-on
Jumper cable end 2
M8 female 3 pins straight connector with screw-on
Collar material
Metal
Cable composition
3 x 0.34 mm²
Wire insulation material
PUR
[Ue] rated operational voltage
45 V DC, 60 V AC
Insulation resistance
1000 MOhm
Resistance across terminals
5000 MILLIOHM
IP degree of protection
IP65
IP67
IP69K
IP67
IP69K
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.975 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

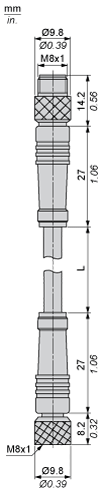

Technical Drawings
Dimensions
- L : Length of cable
