XZCRSE

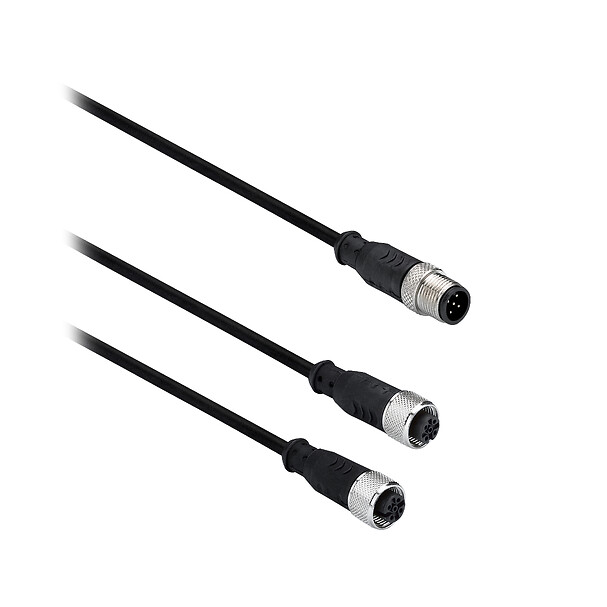

Y M12 5 poles splitters emitter for safety light curtain integrated muting

arrow

Commercialized

green premium
Download pdf datasheet Find a distributor

Expand all

Datasheet

Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Jumper cable end 1
M12 male 5 pins straight connector with screw-on
Jumper cable end 2
M12 female 5 pins straight connector with screw-on
Collar material
Metal
Cable composition
5 x 0.25 mm²
Cable length
0.5 m
Wire insulation material
PVC
Cable outer diameter
5 mm
[Ue] rated operational voltage
30 V DC
[In] rated current
1.5 A
Insulation resistance
>= 100 MOhm
Maximum resistance across terminals
10 mOhm
Net weight
0.07 kg
IP degree of protection
IP65
IP67
Ambient air temperature for operation
-30…80 °C static
Ambient air temperature for storage
-30…80 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.000 cm
Package 1 Width
10.000 cm
Package 1 Length
12.000 cm
Package 1 Weight
60.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
6
Package 2 Height
15.000 cm
Package 2 Width
15.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
558.000 g
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
REACh free of SVHC
Yes
EU RoHS Directive
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
Yes
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
