ZMLPA2P0SH
Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 PNP, hysteresis, M12
Commercialized
Expand all
Datasheet
Range of product
OsiSense XM
Product or component type
Electronic pressure sensors
Device short name
ZMLP
Display range
-14.5...6000
[Us] rated supply voltage
24 V DC SELV (voltage limits: 17…33 V)
Current consumption
<= 50 mA
Electrical connection
Female connector M12, 2 pins
Male connector M12, 4 pins
Male connector M12, 4 pins
Type of output signal
Discrete
Discrete output type
Solid state PNP, 2 NO/NC programmable
Switching function
Hysteresis
Maximum switching current
200 mA
Maximum voltage drop
2 V
Adjustable range of switching point on rising pressure
5…98 % of selected display range
Minimum differential travel
10 % of selected display range
Marking
CE
Front material
Polyester
Housing material
PBT Valox
Operating position
Any position
Protection type
Short-circuit protection
Overload protection
Reverse polarity
Overvoltage protection
Overload protection
Reverse polarity
Overvoltage protection
Response time on output
<= 3 ms for discrete output
Display type
4 digits 7 segments
Local signalling
2 LEDs (yellow) for light ON when switch is actuated
Response time
300 ms
Maximum delay first up
100 ms
Accuracy
<= - 0.1 % of the measuring range
Measurement accuracy
<= 1 % of the measuring range
Display accuracy
<= 1 % of the measuring range
Mechanical durability
10000000 cycles
Depth
42 mm
Height
77 mm
Width
41 mm
Net weight
0.103 kg
[Uimp] rated impulse withstand voltage
0.5 kV DC
Product certifications
cULus
Standards
IEC 61000-6-2
IEC 61000-6-4
UL 508
IEC 61000-6-4
UL 508
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-30…80 °C
IP degree of protection
IP67 conforming to IEC 60529
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
IP65 conforming to IEC 60529
IP69K conforming to DIN 40050
Vibration resistance
5 gn (f= 10…2000 Hz) conforming to IEC 60068-2-6
Shock resistance
25 gn conforming to IEC 60068-2-27
Electromagnetic compatibility
Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Surge immunity test: 1 kV conforming to IEC 61000-4-5
Electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4
Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3
Electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
Surge immunity test: 1 kV conforming to IEC 61000-4-5
Electrical fast transient/burst immunity test: 2 kV conforming to IEC 61000-4-4
Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to IEC 61000-4-3
Electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to IEC 61000-4-2
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.700 cm
Package 1 Width
4.300 cm
Package 1 Length
4.700 cm
Package 1 Weight
105.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
24
Package 2 Height
15.000 cm
Package 2 Width
15.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
2.709 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions

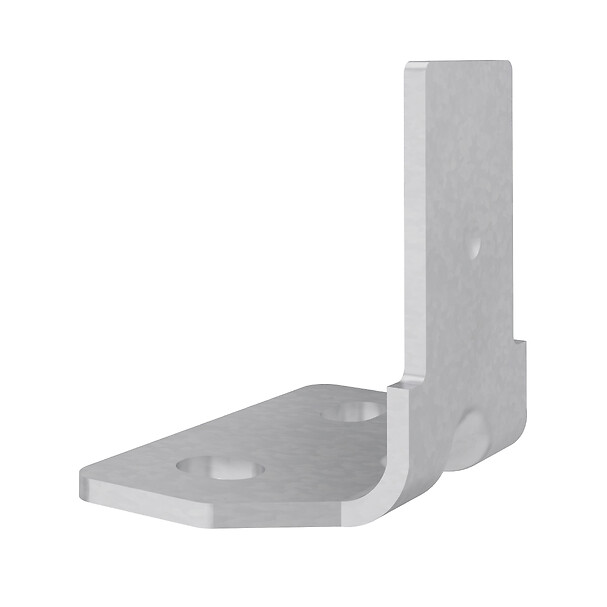

Switch with Metal Bracket for Fixing Horizontally
Dimensions
Switch with Metal Bracket for Fixing Vertically or on an Inlet Pipe
Connections and Schema
Output M12 Male Connector Wiring
- (1) Out 1
- (2) Out 2
Connections and Schema
Input M12 Female Connector Wiring
- (1) l in = 4-20 mA
Two Switching Outputs Description. Hysteresis Mode
- X : Time
- Y : Pressure
- (1) Output
- (2) Fixed hysteresis = 10% of the selected display range
- SP1/SP2 : Set points (adjustable from 11% to 98% nominal pressure)
The hysteresis switching mode is typically used for the pumping applications
Expand all
Documents & Downloads
Document name
Date
Size
11/22/2023
6.5 MB
11/22/2023
5.9 MB
11/22/2023
11.7 MB
11/22/2023
11.7 MB
11/22/2023
5.9 MB
11/22/2023
6.5 MB
Document name
Date
Size
Document name
Date
Size
11/22/2023
10.9 MB
11/22/2023
10.8 MB
11/29/2023
6.6 MB
11/29/2023
6.5 MB
11/29/2023
6.4 MB
11/29/2023
6.5 MB
Document name
Date
Size
12/15/2023
411.1 kB
11/23/2023
368.0 kB
1/2/2024
195.3 kB
1/2/2024
195.3 kB
Document name
Date
Size
11/30/2023
842.7 kB
11/30/2023
680.1 kB
Expand all
Related products & accessoires

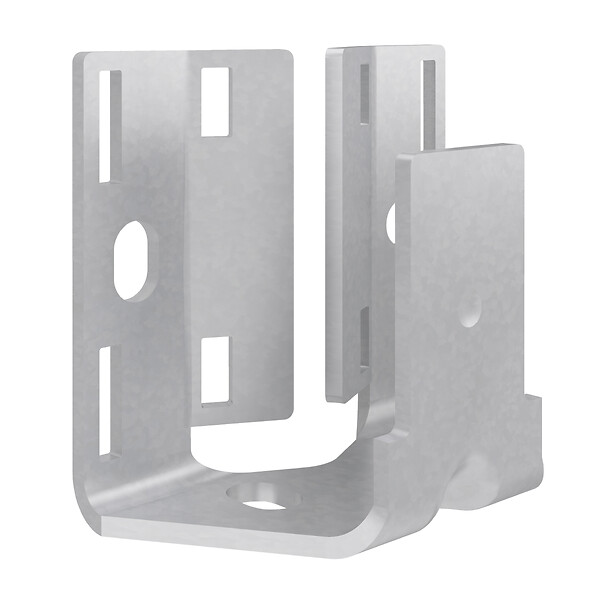

XMLPZLV01
