XULH043539DH7

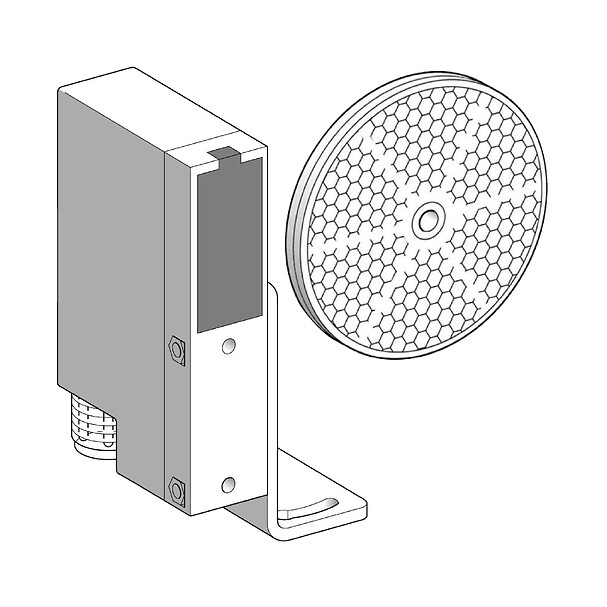

Photo-electric sensor - XUL - polarised - Sn 4m - 12..24VDC - M12

End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :

pdf-Datenblatt herunterladen 3d cad-Datei herunterladen Fachhändler in der Nähe

XULH043539DH7 is replaced by the following product:

XUK9APANM12

Photoelectric sensors XU, XUK, polarised, Sn 5 m, 12...24 VDC, M12

Menge  1

XUZASK003

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK, metal, for XUL substitution

Menge  1

Alle erweitern

Datenblatt

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUL
Sensor design
Compact
Detection system
Polarised reflex
Material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
ABS
Lens material
PMMA
Output type
Solid state
Add on output
Without
Cable composition
4 x 0.34 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED for output state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 35 mA no-load
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay response
2 MILLISECOND
Setting-up
Without sensitivity adjustment
Delay recovery
2 MILLISECOND
Kit composition
Bracket XULZ41
sensor
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov

Alle erweitern

Dokumente & Downloads

Dokumentenname
Datum
Größe
XULH06... /XULJ06... /XULH04... /XULJ04... Compact photo-electric sensor, reflex and polarised reflex type, Instruction Sheet (pdf)

2002-04-01

251979
