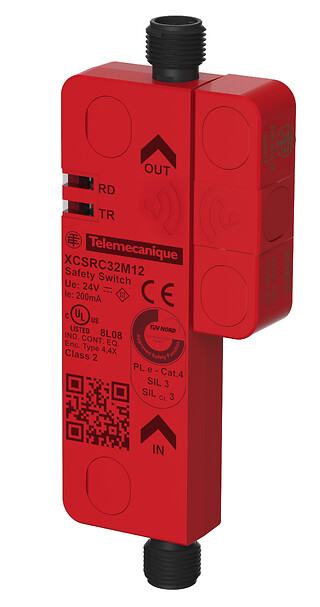

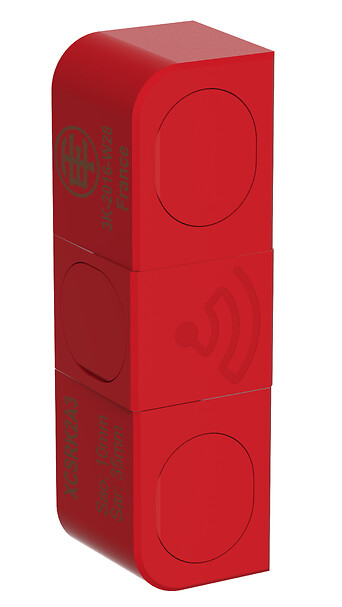

XCSRC32M12

Safety RFID switch XCSRC, contactless, Daisy Chain model, multiple pairing enabled, M12

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Safety switches XCS
Product or component type
Preventa RFID safety switch
Component name
XCSRC
Design
Rectangular, standard
Sensor design
RECTANGULAR STANDARD
ETIM classification
ETIM 9 - EC002544 - Magnetic proximity switch
Connector type
M12 male
Material
Valox
Approach directions
3 directions-transponder with rotary sensing face
Number of poles
5
Safety level
SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1, category 4 conforming to ISO 13849-1
Safety reliability data
PFHD = 5E-10/h conforming to IEC 62061, PFHD = 5E-10/h conforming to ISO 13849-1
[Sa] assured operating distance
10 mm face to face
[Sar] assured tripping distance
35 mm face to face
Product certifications
CSA 22-2
E2
Ecolab
FCC
IC
RCM
TÜV
Marking
CE
cULus
EAC
FCC
IC
RCM
TÜV
Standards
IEC 60947-5-2
IEC 60947-5-3
ISO 14119
Indivisible sale quantity
1
Electrical connection
2 male connectors
[Ue] rated operational voltage
24 V DC (- 20...10 %)SELV or PELV conforming to IEC 60204-1
Maximum switching voltage
26.4 V DC
[Uimp] rated impulse withstand voltage
0.8 kV conforming to IEC 60947-5-2
Switching capacity in mA
200 mA
[Ui] rated insulation voltage
30 V DC
[Ie] rated operational current
60 mA
Electrical shock protection class
Class III conforming to IEC 61140
Response time
120 ms + 50 ms typical per additional switch connected in series
Protection type
Short-circuit protection
Local signalling
Green, orange and red 2 multi-colour LEDs
Safety outputs
2 NO
Type of output stage
Solid-state, PNP
Tightening torque
< 1.5 N.m
Switching frequency
<= 0.5 Hz
Discordance time
120 ms + 18 ms per additional switch connected in series
Delay first up
5 s
Service life
20 year
Size
Transponder: 50 x 15 x 15 mm, reader: 119.6 x 30 x 15 mm
IP degree of protection
IP65 conforming to IEC 60529, IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Ambient air temperature for operation
-25-70 °C
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916059258
Package 1 height
3.3 cm
Package 1 width
14.8 cm
Package 1 length
17.5 cm
Package 1 weight
0.106 kg
Unit type of package 2
S01
Number of units in package 2
12
New Package 2 GTIN 14
13666916059255
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.447 kg
Unit type of package 3
S02
Number of units in package 3
10
New Package 3 GTIN 14
23666916059252
Package 3 height
15 cm
Package 3 width
30 cm
Package 3 length
40 cm

Expand all

Technical Drawings

Dimensions

epds

Connections

M12 Connectors, 5-pin

epds
  • (1) + 24 VDC
  • (2) OSSD2 (O2)
  • (3) 0 VDC
  • (4) OSSD1 (O1)
  • (5) Diagnosis Out (Do)

M12 Connectors, 5-pin

epds
  • (1) + 24 VDC
  • (2) OSSD2 (O2)
  • (3) 0 VDC
  • (4) OSSD1 (O1)
  • (5) Diagnosis Out (Do)
  • (1) + 24 VDC
  • (2) INPUT 2 (I2)
  • (3) 0 VDC
  • (4) INPUT 1 (I1)
  • (5) Diagnosis In (Di)

Connections

Wiring Diagram: Series Connection

epds
  • (1) Start
  • (2) Power circuit

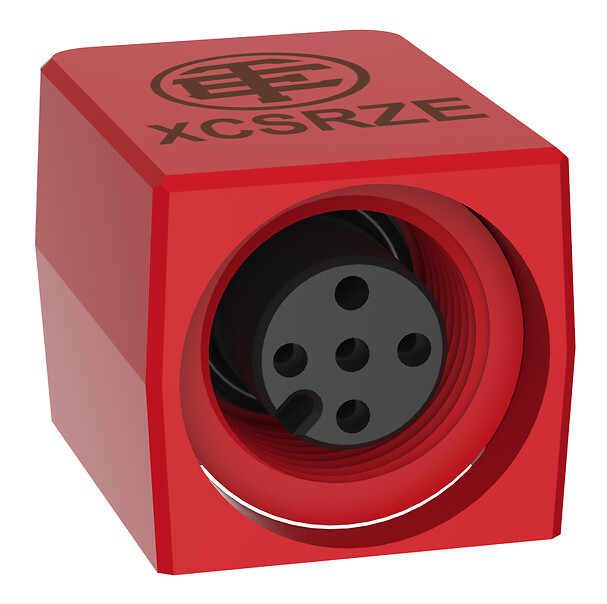

  • (3) Loopback device

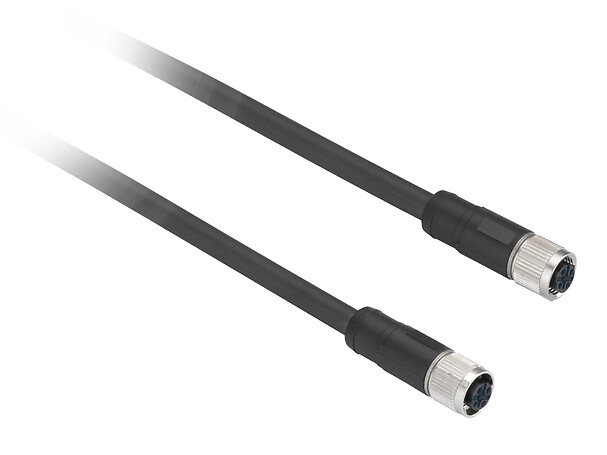

  • (4) M12/M12 female jumpers

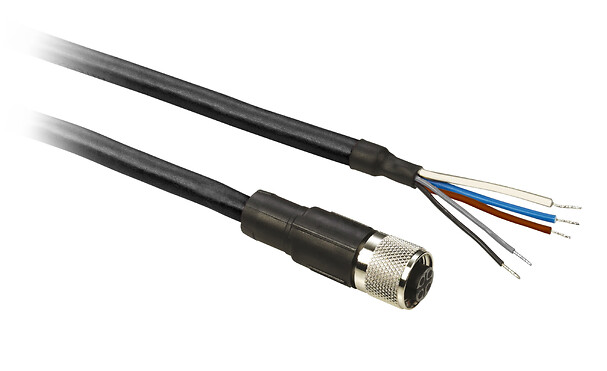

  • (5) Pre-wired female connectors

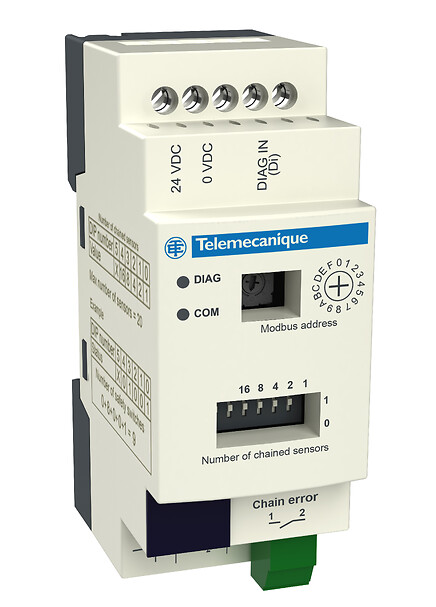

  • (6) Diagnostic module (option)

Mounting and Clearance

Mounting and Clearance

Face to Face Mounting (Preferred Configuration)

epds
  • e min. > 2 mm. (e: recommended minimum mounting distance between transponder and reader)
  • d : Detection limit

Mounting and Clearance

Side by Side Mounting

epds
  • e: Recommended minimum mounting distance between transponder and reader.

Mounting and Clearance

Minimum Mounting Clearances between Safety Switches

epds

Detection Curves

Face to Face Mounting (Preferred Configuration)

epds
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) Recommended minimum mounting distance between transponder and reader.

Detection Curves

epds
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) Recommended minimum mounting distance between transponder and reader.
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) Recommended minimum mounting distance between transponder and reader.

Detection Curves

Side by Side Mounting

epds
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) X=0 for X<0
  • (2) X=0 for X>0
  • (3) Recommended minimum mounting distance between transponder and reader.

Detection Curves

epds
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) X=0 for X<0
  • (2) X=0 for X>0
  • (3) Recommended minimum mounting distance between transponder and reader.
  • Sar: Assured release distance
  • Sao: Assured operating distance
  • (1) X=0 for X<0
  • (2) X=0 for X>0
  • (3) Recommended minimum mounting distance between transponder and reader.
