XIOT11SE0MRCL
Wireless transmitter XIOT, dry contact, LPWAN, Sigfox Europe, subscription not included
COMMERCIALISED
Expand all
Datasheet
[Us] rated supply voltage
3.6 V nominal
Battery type
Lithium integrated
Electrical connection
Cable 2 m
Range of product
Telemecanique Cloud connected sensor XIOT
Product or component type
Wireless transmitter
Type of license
Registration required
Communication network type
Sigfox Europe
Mode of transmission
1 status frame per day
On change on one of the inputs
On change on one of the inputs
Acquisition speed
50 frames/day
6 frames/h
6 frames/h
Transmission rate
100 bit/s
Fixing mode
By screws
Operating distance
<= 10000 m
Directives
1999/5/EC - R&TTE directive
Product certifications
CE
Sigfox ready
Sigfox ready
Standards
EN 301-489-1
ETSI EN 300 220-2
IEC 62368-1
ETSI EN 300 220-2
IEC 62368-1
IP degree of protection
IP66
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
12.8 CENTIMETER
Package 1 length
22 CENTIMETER
Package 1 weight
0.216 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
18
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.821 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings
Dimensions
Connections
Wiring Diagram
Connections

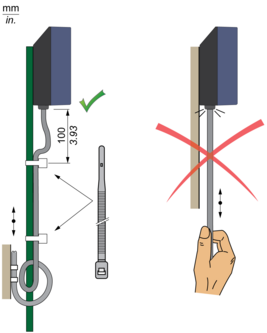

Wiring Precaution
Mounting

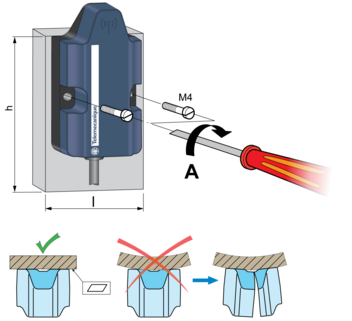

Screw Mounting
Mounting

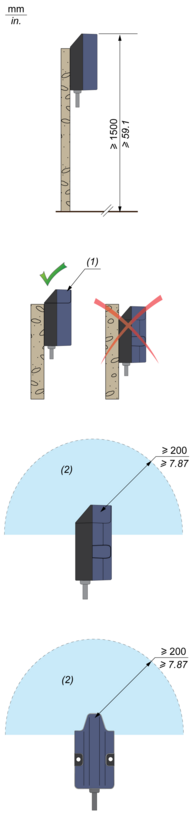

Mounting Precautions
Mounting

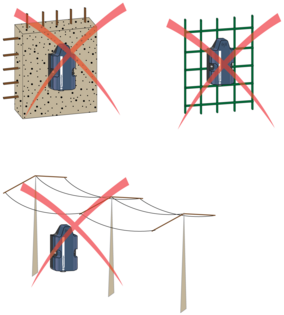

Mounting in a Metal Cabinet
Mounting
Signal Attenuation According to the Material
