XUE5AA2NM12

Photoelectric sensors XU, XUE, BGS, measurement, Sn 6 m, 24 VDC, M12

END OF COMMERCIALISATION

Download pdf datasheet Download 3d cad file Find a distributor

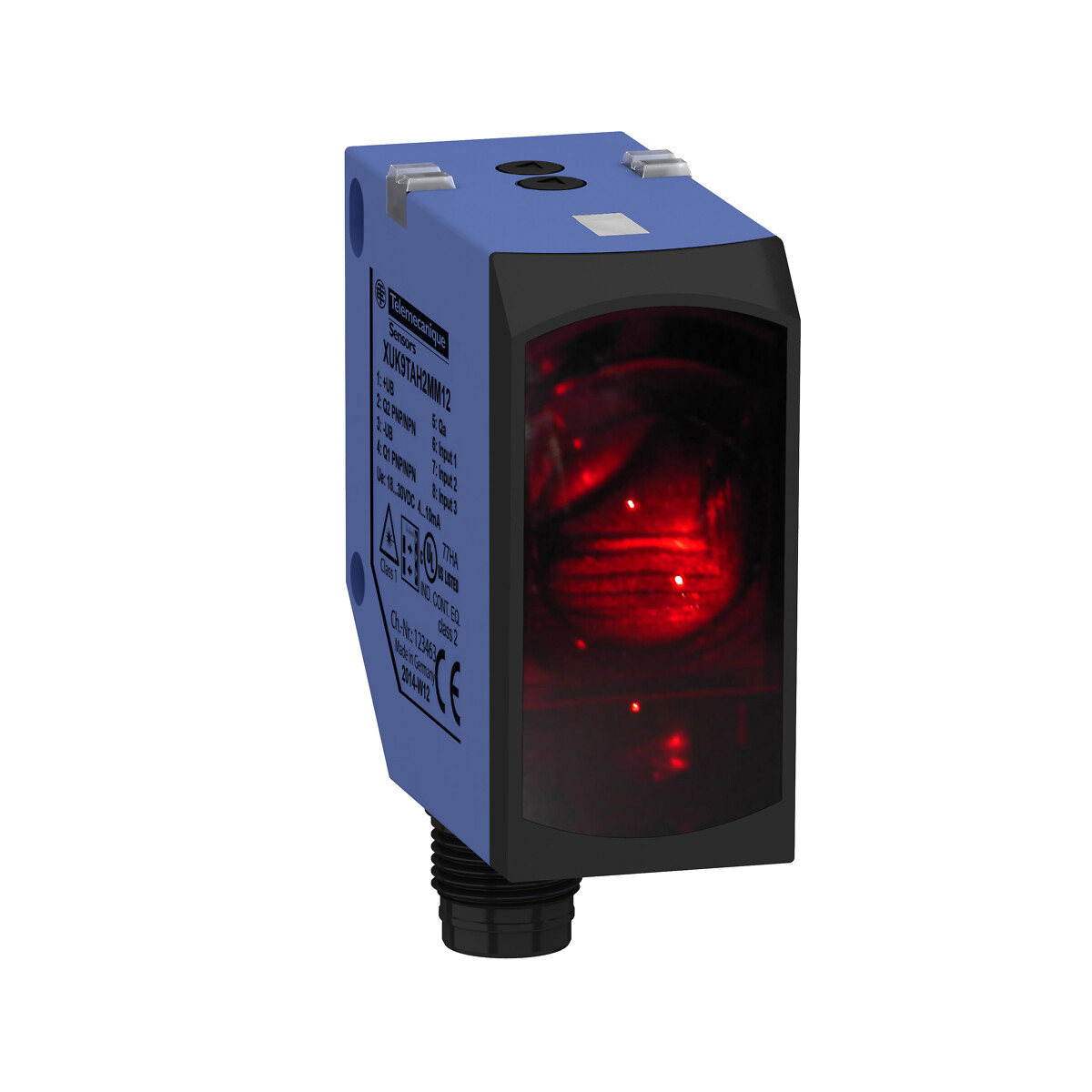

XUE5AA2NM12 is replaced by the following product:

XUK9TAH2MM12

Quantity : 1

Characteristics
Technical Drawings
Documents & Downloads

Expand all

Datasheet

Range of product

Telemecanique Photoelectric sensors XU

Sensor name

XUE

Series name

Application material handling

Product specific application

Distance measurement on object

Enclosure material

ABS, anti-shock

Electronic sensor type

Photo-electric sensor

Sensor design

Compact 90 x 90

Electrical connection

1 male connector M12, 5 pins

Material

Plastic

Wiring technique

5-wire

Detection system

Diffuse

Emission

Discrete output function

2 NO/NC programmable

[Us] rated supply voltage

24 V DC with reverse polarity protection

Supply circuit type

Discrete output type

PNP

Analogue output range

Setting-up

Parametering by buttons

Current consumption

125 mA no-load

Status LED

Switching capacity in mA

100 mA (overload and short-circuit protection)

Lens material

PMMA

Linearity

<= +/- 40 mm

Spot dimension

Sensing range

> 5...15 m

Voltage drop

<2.4 V (closed state)

Delay response

13 ms fast mode, 80 ms slow mode

Switching time

Delay first up

80 MILLISECOND

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60947-5-2

IP degree of protection

IP67 conforming to IEC 60529

Vibration resistance

7 gn, amplitude = +/- 0.5 mm (f = 10-55 Hz) conforming to IEC 60947-5-2

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.5 CENTIMETER

Package 1 width

16 CENTIMETER

Package 1 length

23 CENTIMETER

Package 1 weight

342 GRAM

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
