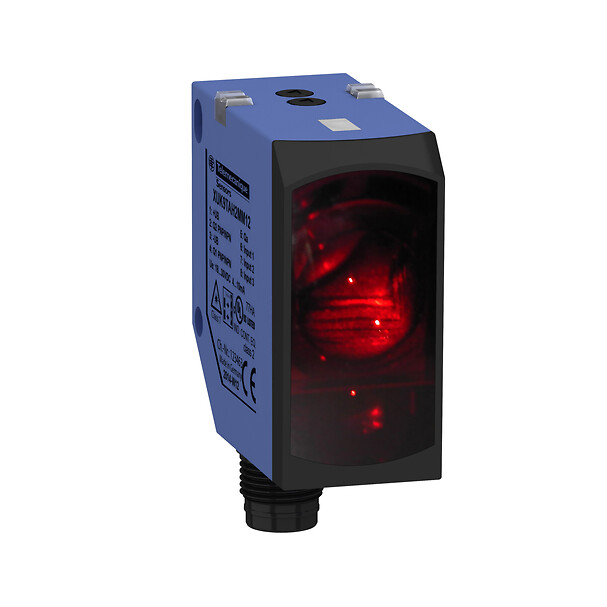

XUK9TAH2MM12
Photoelectric sensors XU, photo electric laser sensor, XUK, reflex, Sn 70 m, 2Q 1Qa 3IN, hoisting app
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application hoisting
Product specific application
Distance measurement on reflector
Enclosure material
ABS/PC
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12, 8 pins
Material
Plastic
Wiring technique
8-wire
Detection system
Polarised reflex
Emission
Red laser polarised reflex class 1 conforming to IEC 60825-1
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Analogue + discrete
Supply circuit type
DC
Discrete output type
PNP or NPN
Analogue output range
-
Delay response
10 MILLISECOND
Setting-up
Using teach button or remote teaching
Current consumption
<= 35 mA no-load
Output type
Analog
solid state
solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
With alarm output
Status LED
1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state
Sensing range
> 0.3...70 m
Maximum voltage drop
<2 V (closed state)
Delay first up
300 MILLISECOND
Delay recovery
10 MILLISECOND
Shock resistance
10 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
9.2 CENTIMETER
Package 1 weight
0.058 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.641 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Connections and Schema
Connector Wiring
