XUK8TAE2MM12
Photoelectric sensors XU, XUK, diffuse Sn 5 m 1out IOLINK or auto PNP/NPN, 1out 4.20 mA
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application assembly
Application material handling
Application material handling
Product specific application
Distance measurement on object
Enclosure material
ABS/PC
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12, 5 pins
Material
Plastic
Wiring technique
5-wire
Detection system
Diffuse with background suppression
Emission
Red laser diffuse distance sensor class 1 conforming to IEC 60825-1
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
24 V DC with reverse polarity protection
Type of output signal
Analogue + discrete
Discrete output type
IOLINK
PNP or NPN
PNP or NPN
Analogue output range
-
Delay response
1.2 MILLISECOND
Setting-up
Using teach button or remote teaching
Current consumption
<= 60 mA no-load
Output type
Analog
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state
Sensing range
> 0.1...5 m
Maximum voltage drop
<2 V
Delay first up
300 MILLISECOND
Delay recovery
1.2 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to IEC 60529, IP69K conforming to DIN 40050
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
9 CENTIMETER
Package 1 weight
0.056 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.785 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
0.059 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

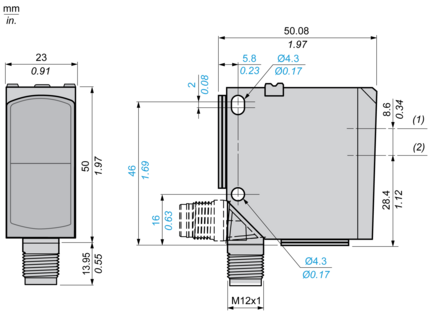

Dimensions

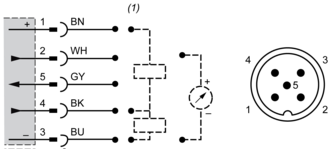

Connections and Schema
Connector Wiring

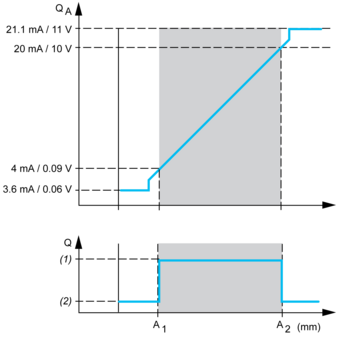

Curves
Curves
Mounting
