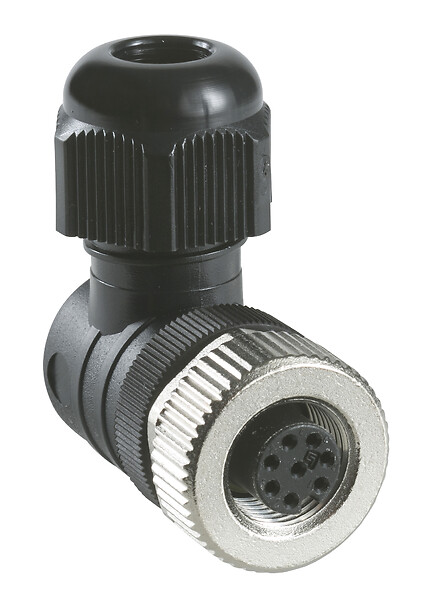

XZCC12FCM80B
Con. M12 Female 90° 8 pins w/ screw terminals cable gland, Metal clamping ring
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Cabling components
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector
Electrical connection
Elbowed female connector M12, 8 pins
Collar material
Metal
Cable connection
Screw terminal
Cable gland type
Pg 7
Cable connector fixing
Clamping ring screwing
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.000 cm
Package 1 Width
6.000 cm
Package 1 Length
6.500 cm
Package 1 Weight
28.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
20
Package 2 Height
15.000 cm
Package 2 Width
15.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
718.000 g
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
