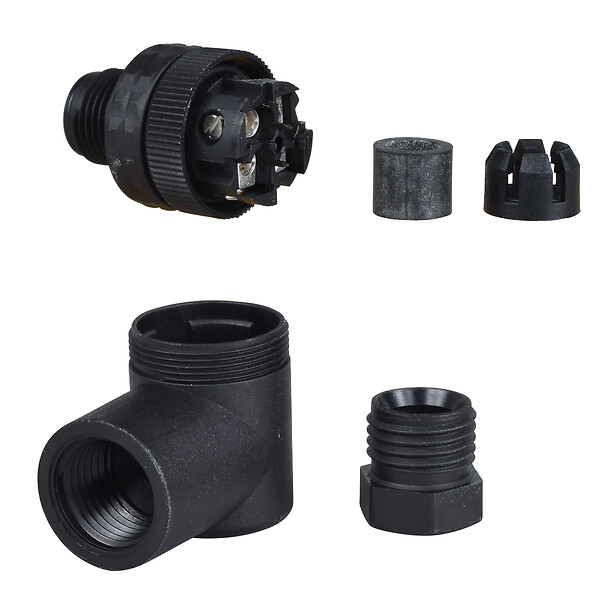

XZCC12MCP40B
Male, M12, 4 pin, elbowed connector, cable gland Pg 7
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Cabling components
Accessory / separate part category
Cabling accessories
Accessory / separate part type
Connector
Electrical connection
Elbowed male connector M12, 4 pins
Collar material
Plastic
Status LED
Without
Cable connection
Screw terminal / wire size <0.75 mm² / clamping capacity 3…6 mm
Cable gland type
Pg 7
Cable connector fixing
Screw-on
[Ue] rated operational voltage
125 V AC
150 V DC
150 V DC
[In] rated current
3 A
Enclosure material
Plastic
Minimum insulating resistance
1000 GΩ
Contact resistance
8000 µOhm
Net weight
0.025 kg
IP degree of protection
IP67
Ambient air temperature for operation
-40…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.000 cm
Package 1 Width
12.500 cm
Package 1 Length
16.000 cm
Package 1 Weight
21.000 g
Unit Type of Package 2
S01
Number of Units in Package 2
50
Package 2 Height
15.000 cm
Package 2 Width
15.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
1.238 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
Expand all
Documents & Downloads
Document name
Date
Size
1/12/2024
195.3 kB
1/12/2024
195.3 kB
