XCMD2106L1

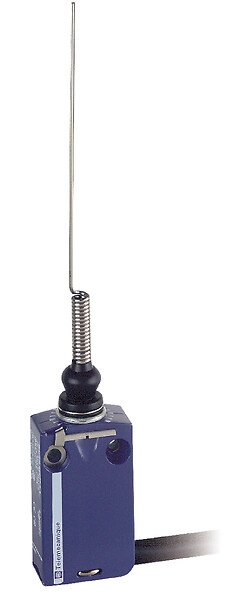

Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1NC+1 NO, snap, 1 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Fixed
Head type
Multi-directional head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Spring return cat''s whisker
Type of approach
Multi-directional approach
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By any moving part
Electrical connection
Removable cable connector
Cable composition
5 x 0.75 mm²
Wire insulation material
PvR
Contacts insulation form
Zb
Positive opening
Without
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15 CENTIMETER
Package 1 width
30 CENTIMETER
Package 1 length
40 CENTIMETER
Package 1 weight
7.98 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
30
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting

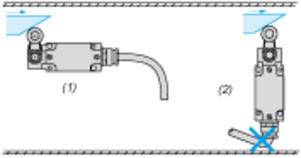

Sweep of Connecting Cable
