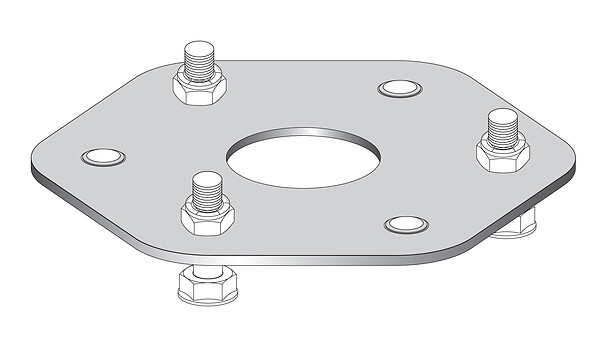

XUSZFB1
Telemecanique Safety light curtains XUSL, Column Simple fixing base
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part type
Fixing base
Product compatibility
XUSL2E
XUSL4E
XUSL4E
Accessory / separate part destination
Fixing column
Kit composition
1 x plate(s)
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
15
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
18.833 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions

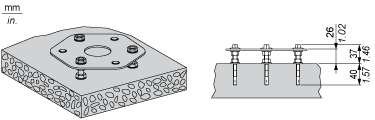

Mounting and Clearance
Simple Fixing Base XUSZFB1
