XZCPV1340L2

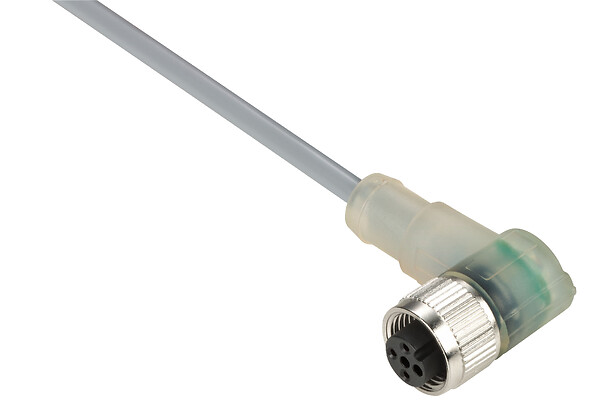

Pre wired connectors XZ, elbowed female, M12, 3 pins, cable PVC 2 m
Commercialised
Expand all
Datasheet
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Elbowed female connector M12, 3 pins
Collar material
Metal
Cable composition
3 x 0.25 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
30 V AC, 36 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.34 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
- (1) 2 LEDs limited to 10…30 VDC max.
Connections and Schemes
Connector
- BU : Blue
- BN : Brown
- BK : Black
Connections and Schemes
LED Connection
- BN : Brown
- BK : Black
- BU : Blue
- GN : Green
- YW : Yellow
- (1) Signal
